Pressure Seal Check Valve, Class 900LB, Cast Steel, BW RF RTJ End

Pressure Seal Check Valve, Class 900LB, Cast Steel, BW RF RTJ End
Pressure Seal Check Valve, Class 900LB, Cast Steel, BW RF RTJ End

Key Specifications / Features

Model No.: Hits: 7

China Pressure Seal Check Valve Manufacturer Shinjo Supplies Pressure Seal Check Valve, Class 900LB, Cast Steel, BW RF RTJ End.
Request a quote

Next: Pressure Seal Check Valve, Class 1500LB, Cast Steel, BW RF RTJ End

Previous: Pressure Seal Check Valve, Class 600LB, Cast Steel, BW RF RTJ End

Detail Information

Futures:
ASME B16.34,
Pressure Seal Swing Disc Type
BW RF RTJ End
ASTM A216 WCB, ASTM A351 CF8M, ASTM A217 WC6, ASTM A217 WC9

Pressure Seal Check Valve, Class 900LB Drawing

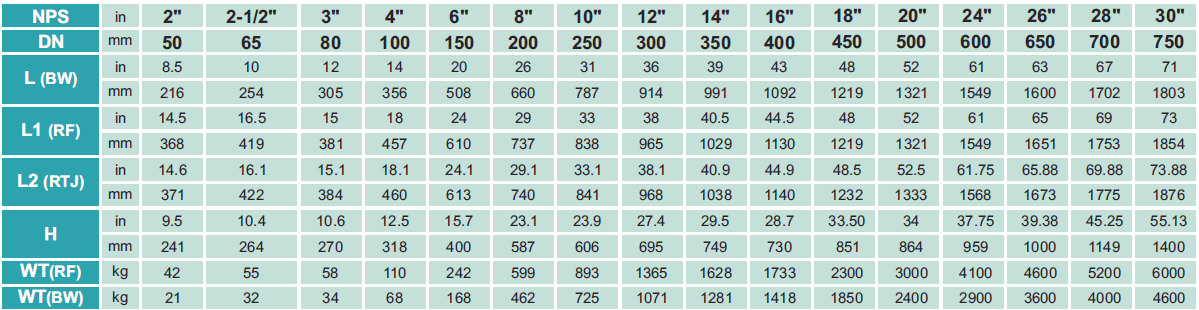

Pressure Seal Check Valve, Class 900LB Size Dimensions
Pressure Seal Check Valve, Class 900LB Size Dimensions
Pressure Seal Check Valve Material Parts
Part Standard Stainless Steel High temperature Service
BODY ASTM A216-WCB ASTM A351-CF8M ASTM A217-WC6 ASTM A217-WC9 ASTM A217-C12A

COVER		 ASTM A216-
WCB(4"&Smaller ASTM A105)		 ASTM A351-
CF8M(4"&Smaller ASTM A182-F316)		 ASTM A217-
WC6(4"&Smaller ASTM A182-F11)		 ASTM A217-
WC9(4"&Smaller ASTM A182-F22)		 ASTM A217-
C12A(4"&Smaller ASTM A182-F91)

DISC		 ASTM A217-CA15 &ASTM A216- WCB/ER410
ASTM A351- CF8M/STL.OVERLAY		 ASTM A217-CA15 &ASTM A217- WC6/ER410 ASTM A217-CA15 &ASTM A217- WC9/ER410
ASTM A217-CA15
HINGE ASTM A105 ASTM A351-CF8M ASTM A217-WC6 ASTM A217-WC9 ASTM A217-C12A
HINGE PIN ASTM A182-F6a ASTM A276-316 ASTM A182-F6a ASTM A182-F6a ASTM A182-F6a
DISC NUT ASTM A276-420 ASTM A276-316 ASTM A276-420 ASTM A276-420 ASTM A276-420

BONNET SEAL RING		 ASTM A182-
F304(4"&Smaller GRAPHITE)		 ASTM A182-
F316L(4"&Smaller GRAPHITE)		 ASTM A182-
F304(4"&Smaller GRAPHITE)		 ASTM A182-
F304(4"&Smaller GRAPHITE)		 ASTM A182-
F304(4"&Smaller GRAPHITE)
HOOK SCREW CARBON STEEL STAINLESS STEEL CARBON STEEL CARBON STEEL CARBON STEEL
COVER STUD ASTM A193-B7 ASTM A193-B8 ASTM A193-B16 ASTM A193-B16 ASTM A193-B16
COVER NUT ASTM A194-2H ASTM A194-8 ASTM A194-4 ASTM A194-4 ASTM A194-4
SEAT RING ASTM A105/STL.OVERLAY ASTM A182- F316/STL.OVERLAY ASTM A182- F11/STL.OVERLAY ASTM A182- F22/STL.OVERLAY ASTM A182- F6a/STL.OVERLAY
SEPARATE RING COVER CARBON STEEL ASTM A276-420 AISI 4140 AISI 4140 AISI 4140
THRUST RING COVER CARBON STEEL ASTM A276-420 AISI 4140 AISI 4140 AISI 4140
SUPPORTING COVER ASTM A105 ASTM A276-420 AISI 4140 AISI 4140 AISI 4140
STOP RING ASTM A276-420 ASTM A276-316 ASTM A276-420 ASTM A276-420 ASTM A276-420
YOKE ASTM A216-WCB ASTM A276-316 ASTM A216-WCB& ASTM A217-WC6 ASTM A216-WCB& ASTM A217-WC6 ASTM A217-C12A
SEPARATE RING FOR STOP RING
ASTM A276-420
ASTM A276-316
ASTM A276-420
ASTM A276-420
ASTM A276-420
SPLIT PIN STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL
STOP RING SCREW STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL
RIVET CARBON STEEL STAINLESS STEEL CARBON STEEL CARBON STEEL STAINLESS STEEL
NAME PLATE STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL
