Pressure Balanced Plug Valve, Class 150, 300, 600, 900 LB
Parts & Material:
1. Bolt: ASTM A193-B7, A320-B8, A193-B8M.
2. Nut: ASTM A194-2H, A194-8, A194-8M.
3. Cover: ASTMA216-WCB, A217-WC1, WC6, WC9, C5, C351-CF8, CF8M, CF3, CF3M.
4. Metal Diaphragm: ASTM SS304, 304L, 316, 316L.
5. Wind Gasket: Flexible Graphite + Stainless Steel.
6. Set for Ball: ASTM A276 410, A276 304, 304L, 316, 316L.
7. Ball: ASTM SS304, 304L, 316, 316L.
8. Plug: ASTM A217CA15, A182F6a, A351 CF8, CF8M, CF3, CF3M.
9. Body: ASTM A216-WCB, A217-WC1, WC6, WC9, C5, C351-CF8, CF8M, CF3, CF3M.
10. Check Valve: UCA.
11. Gasket: PTFE.
12. Stem: ASTM A182 F6a, A182 F304, F316, F304L, F316L.
13. Ring: Viton.
14. Bolt: ASTM A193-B7. A320-B8, A193-B8M.
15. Packing: Flexible Graphite.
16. Grease Nozzle: UCA.
17. Nozzle: UCA.
18. Hand hole: ASTM A216-WC6.
19. Pipe: ASTM A570.
20. Gland: ASTM A216-WCB, A217-WC1, WC6, WC9, C5, A351-CF8.
21. Lock Nut: ASTM A194-2H, A194-8, A194-8M.
22. Adjusting Bolt: ASTM A193-B7, A320-B8, A193-B8M.
Operation
 		 Manual
Electric Actuator
Design Standard API 599, API 6D
Face to Face ASME B16.10
Flange Ends ASME B16.5
Test & Inspection API598 API 60

Nominal Pressure Shell Test Sealing Test Suitable Temp. Fluids
150 3.0 2.2 ≤300°C Water Oil & Gas
300 7.5 5.5
600 15.0 11.0
900 22.5 16.5

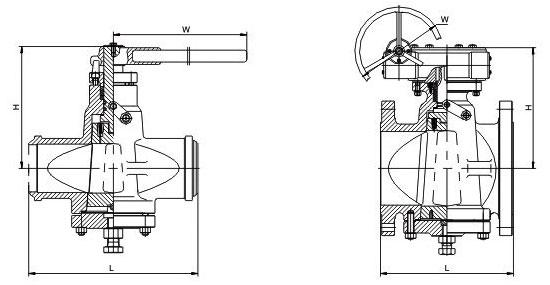

Dimensions and Weights:

Pressure Balanced Plug Valve, Class 150, 300, 600, 900 LB

Pressure 150 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
Weight (Kg) 10 12 14 17 19 21 29 33 48 75 98 125 171 230 370


Pressure 300 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 140 152 165 178 190 216 241 283 305 381 403 419 457 502 762
L-BW 152 178 203 216 229 267 305 330 356 381 457 521 550 635 762
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 600 600 820 1000 1000 300 300 320 320 350 380 380
Weight (Kg) 12 14 16 19 21 24 31 36 61 86 130 190 255 380 560

Pressure 600 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF.BW 165 190 216 229 214 292 330 356 432 508 559 660 787 838 889
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 500 600 820 1000 1000 300 300 320 320 350 380 380
Weight (Kg) 14 16 18 20 24 29 35 47 91 129 210 320 660 920 1250

Pressure 900 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF.BW 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 500 600 820 1000 1000 300 300 320 320 350 380 380
Weight (Kg) 17 29 21 24 30 37 44 65 110 160 255 .380 810 1050 1460
