Introduction
Double block & bleed valve (DBBV) is a non-lubricated, resilient seal, plug-type valve which has a mechanical means of freeing the plug before it is rotated from the closed to the open position.
In opening the valve, the plug is raised, thus retracting the seating segments or slips through their tapered dovetail connections. Only after the slips are fully retracted from the body seat is the plug rotated to the open position.
Conversely, in closing the valve, the plug and slips are rotated freely, with no seal-to-body contact until the slips are positioned over the ports.
Then the plug is driven down between the slips and the tapered surfaces wedge out the slips for a positive upstream as well as downstream shut-off.
Orbit Plug Valve
The small DBB general plug valve is handwheel operated, and require up to 3 turns to open or close. Up to 2 3/4 turns expand or retract the slips, while turn rotates the plug. Large valves operate in a similar manner, except that they have enclosed weather-proof worm gearing.
At the top of the valve, a position indicator flag shows the exact plug position. It appears in line with the flow when the valve is open and perpendicular to the flow when the valve is closed.
Since DBBV hold bubble-tight, for ease of opening in liquid service, it is important to prevent trapped body pressure from exceeding the working pressure of the valve.
Therefore, a relief system is required to prevent pressure buildup in the body cavity.
For maximum upstream sealing, do not back off the hand wheel.
Warning: Do not over torque by using cheater bars.
Orbit Plug Valve Open And Closed Position
Pressure Test
ASME Class 150 300 600 900 Result
Shell Test Pressure
(Valve Open)		 (Pisg)
(kg/cm2)		 500
35		 1200
85		 2250
158		 3350
235		 No Leakage Permitted
Seat Test Pressure (Pisg) 300 800 1600 2400 Test upstream & downstream
(Valve Closed) (kg/cm2) 21 56 113 168 Seats. No leakage permitted
Supplementary (API 598)
Air Seat Test Pressure		 (Pisg) 80 80 80 80 Test upstream & downstream
(Valve Closed) (kg/cm2) 6 6 6 6 Seats. No leakage permitted

Structure of Short Pattern Orbit Plug Valve with Handle Wheel

Structure of Short Pattern Orbit Plug Valve With Handle Wheel
Body Cover Bearing Drain valve O-ring Spiral
Wounded
Gasket		 Stud Nut Plug Disc
11 12 13 14 15 16 17 18 19 20
Upper Cover Upper
Bearing		 Seal ring O-ring Packing Packing
Gland		 Yoke Slide
Bushing		 Stem Hand Wheel

Structure of Short Pattern Orbit Plug Valve with Gear

Structure of Short Pattern Orbit Plug Valve With Gear
Body Lower Cover Non-lubricated
bearing		 Drain Valve O-ring FS Gasket Stud Nut Plug Disc
11 12 13 14 15 16 17 18 19 20
Upper Cover Stem FS Packing Pin Inner Hex
Screw		 Block Stud Nut Driving device Seal Ring
Structure of Reduced Bore Type Orbit Plug Valve with Gear
Body Lower Cover Non-lubricated
bearing		 Drain Valve O-ring FS Gasket Stud Nut Plug Disc
11 12 13 14 15 16 17 18 19 20
Upper Cover Stem FS Packing Pin Inner Hex
Screw		 Packing
Gland		 Block Stud Nut Handwheel
21 22 23 24 25 26 27 28 29 30
Seal Ring Guiding Bush Shaft Bushing Indicating Arm Set Screw Pointer Nut Stud Handwheel Pin
31 32 33 34 35
Seal Ring Inner Hex
Screw		 FS Packing Bearing Drain Valve

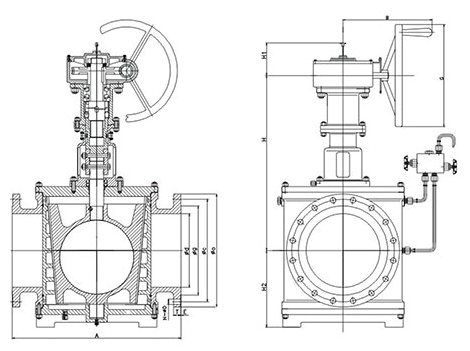

Structure of Full Bore Type Orbit Plug Valve with Gear
Structure of Full Bore Type Orbit Plug Valve with Gear
Body Lower Cover Non-lubricated
Bearing		 Drain Valve O-ring FS Gasket Stud Nut Plug Disc
11 12 13 14 15 16 17 18 19 20
Upper Cover Stem FS Packing Pin Inner
Hex Screw		 Emgency seal device Plug Bolt Nut Driving Device
21 22 23 24 25 26 27 28 29 30
Seal Ring Guiding Bush Bearing Indicating
Arm		 Set Screw Pointer Nut Bolt Hand Wheel Pin
31 32 33 34 35
Inner
Hex Screw		 Inner
Hex Bolt		 FS Packing Bearing Drain Valve

Structure of Gear

Structure Of Gear
NO. Name
1 Yoke
2 Driving Stem
3 Driving Bushing
4 Worm Gear
5 Gear Stem
6 Box
7 Bearing Seat
8 Box Cover
9 Indicating Arm
10 HW
11 Lever
12 End cover
13 Gasket
14 Lockable Nut
15 Locking Nose
16 Lock Pad
17 Cover Cap
18 Nut
19 Stud
20 Bolt
21 Bolt
22 Lock screw
23 Bolt
24 Bolt
25 O-ring
26 O-ring
27 O-ring
28 O-ring
29 O-ring
30 Normal Key
31 Normal Key
32 Shaft Washer
33 Oil Cup
34 Bearing
35 Bearing

Materials
Orbit Plug Valve Main Parts Materials
Dimension of Short Pattern Orbit Plug Valve With Handwheel
Dimension of Short Pattern Orbit Plug Valve With Handwheel
Class NPS A d g c o T E N-ΦD H H1 G Wt Cv
150 2 178 50 92 120.7 150 14.3 2 4-19 470 135 250 26 190
3 203 76 127 152.4 190 17.5 2 4-19 517 159 300 34 254
4 229 100 157.2 190.5 230 22.3 2 8-19 573 185 400 72 582
6 267 150 215.9 241.3 280 23.9 2 8-22.5 712 215 450 107 1360
8 292 201 269.9 298.5 345 27 2 8-22.5 760 288 500 210 2250
300 2 216 50 92 127 165 20.7 2 8-19 470 135 250 30 201
3 283 76 127 168.3 210 27 2 8-22.5 530 159 350 43 265
4 305 100 157.2 200 255 30.2 2 8-22.5 577 185 450 86 610
6 403 150 215.9 269.9 320 35 2 12-22.5 712 220 550 180 1680
600 2 292 50 92 127 165 25.4 7 8-19 515 139 350 52 275
3 356 76 127 168.3 210 31.8 7 8-22.5 530 159 400 77 290
4 432 100 157.2 215.9 275 38.1 7 8-25.5 618 190 500 120 830

PN DN A d 9 c 0 T E N-ΦD H H1 G Wt Cv
1.6 50 178 50 100 125 160 16 3 4-18 470 135 250 26 190
80 203 76 135 160 195 20 3 8-18 517 159 300 34 254
100 229 100 155 180 215 20 3 8-18 573 185 400 72 582
150 267 150 210 240 280 24 3 8-22 712 215 450 107 1360
200 292 201 265 295 335 26 3 12-23 760 288 500 210 2250
2.5 50 216 50 100 125 160 20 3 4-18 470 135 250 30 201
80 283 76 135 160 195 22 3 8-18 530 159 350 43 265
100 305 100 160 190 230 24 3 8-23 577 185 450 86 610
150 403 150 218 250 300 30 3 8-25 712 220 550 180 1680
4.0 50 216 50 100 125 160 20 3 4-18 470 135 250 30 201
80 283 76 135 160 195 22 3 8-18 530 159 350 43 265
100 305 100 156 190 230 24 3 8-23 577 185 450 86 610
150 403 150 218 250 300 30 3 8-25 712 220 550 180 1680
6.3 50 292 50 105 135 175 26 3 4-23 515 139 350 52 275
80 356 76 140 170 210 30 3 8-23 530 159 400 77 290
100 432 100 168 200 250 32 3 8-25 618 190 500 120 830
10 50 292 50 112 145 195 28 3 4-25 515 139 350 52 275
80 356 76 148 180 230 34 3 8-25 530 159 400 77 290
100 432 100 172 210 265 38 4.5 8-30 618 190 500 120 830

Dimension of Short Pattern Orbit Plug Valve With Gear

dimension-of-short-pattern-orbit-plug-valve-with-gear
Class NPS A d g c o T E N-ΦD H H1 H2 G B Wt Cv
150 2 178 50 92 120.7 150 14.3 2 4-19 412 155 135 320 265 35 190
3 203 76 127 152.4 190 17.5 2 4-19 429 155 159 320 265 48 254
4 229 100 157.2 190.5 230 22.3 2 8-19 454 155 185 320 265 88 582
6 267 150 215.9 241.3 280 23.9 2 8-22.5 575 185 215 460 330 126 1360
8 292 201 269.9 298.5 345 27 2 8-22.5 656 185 288 460 330 246 2250
10 330 252 323.8 362 405 28.6 2 12-25.5 734 185 333 460 330 289 3506
12 356 303 381 431.8 485 30.2 2 12-25.5 752 194 350 460 372 458 3920
14 381 334 412.8 476.3 535 33.4 2 12-28.5 808 194 385 460 372 560 5420
16 406 385 469.9 539.8 595 35 2 16-28.5 847 210 417 500 400 775 6910
300 2 216 50 92 127 165 20.7 2 8-19 412 155 135 320 265 42 201
3 283 76 127 168.3 210 27 2 8-22.5 429 155 159 320 265 55 265
4 305 100 157.2 200 255 30.2 2 8-22.5 454 155 185 320 265 88 610
6 403 150 215.9 269.9 320 35 2 12-22.5 575 185 215 460 330 185 1680
8 419 201 269.9 330.2 380 39.7 2 12-25.5 656 185 288 460 330 362 2955
10 457 252 323.8 387.4 445 46.1 2 16-28.5 734 185 333 460 330 462 3490
12 502 303 381 450.8 520 49.3 2 16-32 752 194 350 460 372 736 4630
600 2 292 50 92 127 165 25.4 7 8-19 430 180 140 320 280 54 275
3 356 76 127 168.3 210 31.8 7 8-22.5 445 180 159 320 280 80 290
4 432 100 157.2 215.9 275 38.1 7 8-25.5 525 185 190 460 330 145 830
6 559 150 215.9 292.1 355 47.7 7 12-28.5 655 194 249 460 372 360 2235
8 660 201 269.9 349.2 420 55.6 7 12-32 760 210 310 500 400 574 3550

PN DN A d g c o T E N-ΦD H H1 H2 G B Wt Cv
1.6 50 178 50 100 125 160 16 3 4-18 412 155 135 320 265 35 190
80 203 76 135 160 195 20 3 8-18 429 155 159 320 265 48 254
100 229 100 155 180 215 20 3 8-18 454 155 185 320 265 88 582
150 267 150 210 240 280 24 3 8-23 575 185 215 460 330 126 1360
200 292 201 265 295 335 26 3 12-23 656 185 288 460 330 246 2250
250 252 323.8 320 355 405 30 3 12-25 734 185 333 460 330 289 3506
300 303 381 375 410 460 30 3 12-25 752 194 350 460 372 458 3920
350 381 334 435 470 520 34 3 16-25 808 194 385 460 372 560 5420
400 406 385 485 525 580 36 3 16-30 847 210 417 500 400 775 6910
2.5 50 216 50 100 125 160 20 3 4-18 412 155 135 320 265 42 201
80 283 76 135 160 195 22 3 8-18 429 155 159 320 265 55 265
100 305 100 160 190 230 24 3 8-23 454 155 185 320 265 88 610
150 403 150 218 250 300 30 3 8-25 575 185 215 460 330 185 1680
200 419 201 278 310 360 34 3 12-25 656 185 288 460 330 362 2955
250 457 252 332 370 425 36 3 12-30 734 185 333 460 330 462 3490
300 502 303 390 430 485 40 3 16-30 752 194 350 460 372 736 4630

PN DN A d g c o T E N-ΦD H H1 H2 G B Wt Cv
4.0
Female
face		 50 216 50 100 125 165 20 3 4-18 412 155 135 320 265 42 201
80 283 76 135 160 195 22 3 8-18 429 155 159 320 265 55 265
100 305 100 160 190 230 24 3 8-23 454 155 185 320 265 88 610
150 403 150 218 250 300 30 3 8-25 575 185 215 460 330 185 1680
200 419 201 282 320 375 38 3 12-30 656 185 288 460 330 362 2955
250 457 252 345 385 445 42 3 12-34 734 185 333 460 330 462 3490
300 502 303 409 450 510 46 4 16-34 752 194 350 460 372 736 4630
6.3
Female
face		 50 292 50 105 135 175 26 3 4-23 430 180 140 320 280 54 275
80 356 76 140 170 210 30 3 8-23 445 180 159 320 280 80 290
100 432 100 168 200 250 32 3 8-25 525 185 190 460 330 145 830
150 559 150 240 280 345 38 3 8-34 655 194 249 460 372 360 2235
200 660 201 300 345 415 44 3 12-34 760 210 310 500 400 574 3550
10
Female
face		 50 292 50 112 145 195 28 3 4-25 430 180 140 320 280 54 275
80 356 76 148 180 230 34 3 8-25 445 180 159 320 280 80 290
100 432 100 172 210 265 38 3 8-30 525 185 190 460 330 145 830
150 559 150 250 290 350 46 3 12-34 655 194 249 460 372 360 2235
200 660 201 312 360 430 54 3 12-41 760 210 310 500 400 574 3550

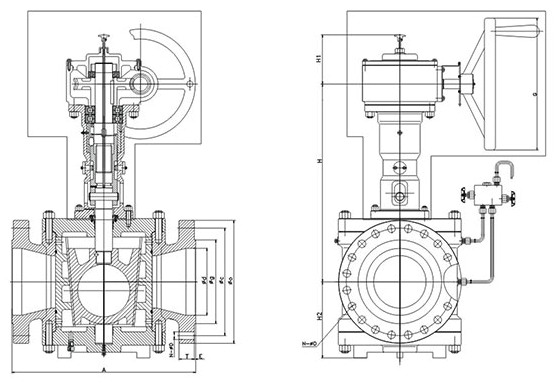

Dimension of Reduced Bore Type Orbit Plug Valve With Gear
Dimension of Reduced Bore Type Orbit Plug Valve With Gear
Class NPS A d 9 c 0 T E N-ΦD H H1 H2 G B Wt Cv
150 18 864 436 533.4 577.9 635 38.1 2 16-32 923 210 393 600 463 1385 10740
20 1016 487 584.2 635 700 41.3 2 20-32 958 210 436 600 463 1748 15460
24 1219 589 692.2 749.3 815 46.1 2 20-35 1121 230 492 720 488 3405 23660
30 1524 735 857.2 914.4 984 74.6 2 28-35 1269 250 590 860 770 7240 32500
36 1981 874 1022 1085.8 1168 90.4 2 4-22 1500 250 730 860 815 11198 47300
300 14 762 334 412.8 514.4 585 52.4 2 20-32 860 210 338 600 463 1080 59200
16 838 385 469.9 571.5 650 55.6 2 20-35 943 210 372 600 463 1440 9250
18 914 436 533.4 628.6 710 58.8 2 24-35 1048 230 414 720 488 1895 11320
20 990 487 584.2 685.8 775 62 2 24-35 1094 250 465 860 770 2220 16050
24 1320 589 692.2 812.8 915 68.3 2 24-41 1148 250 519 860 770 4430 26590
30 1651 735 857.2 997 1092 92 2 4-22 1435 250 590 860 815 8178 32990
600 10 787 252 323.8 431.8 510 63.5 7 16-35 919 230 336 720 488 1055 5020
12 838 303 381 489 560 66.7 7 20-35 950 230 361 720 488 1375 9160
14 889 334 412.8 527 605 69.9 7 20-38 964 230 375 720 488 2228 9400
16 991 385 469.9 603.2 685 76.2 7 20-41 1132 250 413 860 770 2338 10800
18 1029 436 533.4 654 745 82.6 7 20-44.5 1150 250 442 860 770 3566 13500
20 1194 487 584.2 723.9 815 88.9 7 24-44.5 1336 250 479 860 815 4992 16260
24 1397 589 692.2 838.2 940 101.6 7 24-51 1407 250 607 860 815 8154 2660
900 2 368 50 92 165.1 215 38.1 7 8-25.5 514 185 186 460 330 97 155
3 381 76 127 190.5 240 38.1 7 8-25.5 582 185 171 460 330 126 245
4 457 100 157.2 235 290 44.5 7 8-32 627 185 203 460 330 216 640
6 610 150 215.9 317.5 380 55.6 7 12-32 710 194 270 500 372 530 2350
8 737 201 269.9 393.7 470 63.5 7 12-38 908 230 303 720 488 618 4140
10 838 252 323.8 469.9 545 69.9 7 16-38 1068 250 356 860 770 1956 5420
1500 2 368 50 124 165.1 215 38.1 7.9 8-25.5 592 185 190 460 330 97 155
3 470 76 168 203.2 265 47.7 7.9 8-32 607 185 202 460 330 152 240

PN DN A d g c o T E N-ΦD H H1 H2 G B Wt Cv
1.6 450 864 436 550 585 640 40 4 20-30 923 200 393 600 463 1385 10740
500 1016 487 610 650 715 44 4 20-33 958 200 436 600 463 1748 15460
600 1219 589 725 770 840 54 5 20-36 1121 230 492 720 488 3405 23660
900 1981 874 1000 1050 1125 64 5 28-39 1500 250 730 860 815 11198 47300
2.5
Female
face		 350 762 334 450 490 555 38 4 16-33 860 200 338 600 463 1080 59200
400 838 385 505 550 620 40 4 16-36 943 200 372 600 463 1440 9250
450 914 436 555 600 670 46 4 20-36 1048 230 414 720 488 1895 11320
500 991 487 615 660 730 48 4 20-36 1094 250 465 860 770 2220 16050
600 1143 589 720 770 845 58 5 20-39 1148 250 519 860 770 4430 26590
4.0
Female
face		 350 762 334 465 510 580 46 4 16-36 860 200 338 600 463 1080 59200
400 838 385 535 585 660 50 4 16-39 943 200 372 600 463 1440 9250
450 914 436 560 610 685 57 4 20-39 1048 230 414 720 488 1895 11320
500 991 487 615 670 755 57 4 20-42 1094 250 465 860 770 2220 16050
600 1143 589 735 795 890 72 5 20-48 1148 250 519 860 770 4430 26590
6.3
Female
face		 250 673 252 345 400 470 46 3 12-36 919 230 336 720 488 1055 5020
300 762 303 410 460 530 52 4 16-36 950 230 361 720 488 1375 9160
350 826 334 465 525 600 56 4 16-39 964 230 375 720 488 2228 9400
400 902 436 535 585 670 60 4 16-42 1132 250 413 860 770 2338 10800
10.0
Female
face		 250 787 252 345 430 505 60 3 12-39 919 230 336 720 488 1055 5020
300 838 303 410 500 585 68 4 16-42 950 230 361 720 488 1375 9160
350 889 334 465 560 655 74 4 16-48 964 230 375 720 488 2228 9400
400 991 436 535 620 715 80 4 16-54 1132 250 413 860 770 2338 10800
16.0
Female
face		 50 368 50 102 145 195 30 3 4-26 514 185 186 460 330 97 155
80 381 76 138 180 230 36 3 8-26 582 185 171 460 330 126 245
100 457 100 162 210 265 40 3 8-30 627 185 203 460 330 216 640
150 610 150 218 290 355 50 3 12-33 710 194 270 500 372 530 2350
200 737 201 285 360 430 60 3 12-36 908 230 303 720 488 618 4140
250 838 252 345 430 515 68 3 12-42 1068 250 356 860 770 1956 5420


Dimension of Round Hole Full bore Type Orbit Plug Valve With Gear
Dimension of Round Hole Full bore Type Orbit Plug Valve With Gear
Class NPS A d g c o T E N- ΦD H H1 H2 G B Wt Cv
150 2 267 50 92 120.7 150 14.3 2 4-19 424 155 158 320 265 114 525
3 343 76 127 152.4 190 17.5 2 4-19 516 175 186 320 280 171 1280
4 432 100 157.2 190.5 230 22.3 2 8-19 535 175 218 320 280 218 2330
6 546 150 215.9 241.3 280 23.9 2 8-22 662 185 258 460 330 284 5250
8 622 201 269.9 298.5 345 27 2 8-22 732 194 290 460 372 468 10800
10 660 252 323.8 362 405 28.6 2 12-26 761 194 323 460 372 693 17500
12 762 303 381 431.8 485 30.2 2 12-26 900 210 377 600 463 908 25600
14 686 334 412.8 476.3 535 33.4 2 12-29 923 210 393 600 463 1308 31400
16 762 385 469.9 539.8 595 35 2 16-29 958 210 436 600 463 1634 42500
18 864 436 533.4 577.9 635 38.1 2 16-32 1042 230 484 720 488 3098 54700
20 914 487 584.2 635 700 41.3 2 20-32 1067 230 507 7520 488 3351 70900
24 1067 589 692.2 749.3 815 46.1 2 20-35 1269 250 590 860 770 6958 106000

Class NPS A d g c o T E N- ΦD H H1 H2 G B Wt Cv
300 2 283 50 92 127 165 20.7 2 8-19 500 175 159 320 280 142 520
3 387 76 127 168.3 210 27 2 8-22 516 175 195 320 280 215 1250
4 457 100 157.2 200 255 30.2 2 8-22 539 175 218 320 280 238 2280
6 559 150 215.9 369.9 320 35 2 12-22 668 185 260 460 330 334 5140
8 686 201 269.9 330.2 380 39.7 2 12-26 844 210 295 600 463 682 10580
10 826 252 323.8 387.4 445 46.1 2 16-29 872 210 332 600 463 978 17100
12 965 303 381 450.8 520 49.3 2 16-32 964 230 378 720 488 1359 25000
14 762 334 412.8 514.4 585 52.4 2 20-32 982 230 408 720 488 1856 30700
16 838 385 469.9 571.5 650 55.6 2 20-35 1154 250 460 860 770 2174 41600
18 914 436 533.4 628.6 710 58.8 2 24-35 1185 250 501 860 770 3238 53600
20 991 487 584.2 685.8 775 62 2 24-35 1216 250 532 860 815 3805 69400

Class NPS A d g c o T E N- ΦD H H1 H2 G B Wt Cv
600 2 330 50 92 127 165 25.4 7 8-19 510 175 171 320 280 217 510
3 445 76 127 168.3 210 31.8 7 8-22 607 185 195 320 330 297 1240
4 508 100 157.2 215.9 275 38.1 7 8-26 632 185 223 320 330 331 2260
6 660 150 215.9 292.1 355 47.7 7 12-29 736 210 284 500 400 598 4640
8 794 201 269.9 349.2 420 55.6 7 12-32 919 230 336 720 488 1185 9030
10 940 252 323.8 431.8 510 63.5 7 16-35 956 230 375 720 488 1924 14790
12 1067 303 381 489 560 66.7 7 20-35 1132 250 413 860 770 2663 23080
14 889 334 412.8 527 605 69.9 7 20-39 1157 250 442 860 815 4305 29020
16 991 436 469.9 603.2 685 76.2 7 20-42 1346 250 484 860 815 5164 39300

Comment Form

Nickname*:
E-mail*:
Rate*:
Comments*:

Similar Products

Forged steel Pressure Seal Swing Check Valve, A105, F304(L), F22

Forged steel Pressure Seal Swing Check Valve, A105, F304(L), F22

Request a quote

ZMAS Pneumatic Angle Type High Pressure Regulating Valve, Class 150-1500 LB

ZMAS Pneumatic Angle Type High Pressure Regulating Valve, Class 150-1500 LB

Request a quote

Power Station Pressure Seal Swing Check Valve, WCB, WC1, WC6, WC9

Power Station Pressure Seal Swing Check Valve, WCB, WC1, WC6, WC9

Request a quote

Conventional Safety Relief Valve (PRV), Orifice Area D

Conventional Safety Relief Valve (PRV), Orifice Area D

Request a quote
