Plug valves are valves with round or conically tapered "plugs" which may be rotated within the valve body to manage flow with the valve. The plugs in plug valves have a number of hollow passageways going sideways with the plug, to ensure that fluid can flow with the plug once the valve is open. Plug valves are pretty straight forward and frequently economical.
Overview
Metal Seated Lift Plug Valve is relevant towards the cutting and connection of pipelines medium that turned on in a variety of industries as oil, chemical industry, pharmacy, chemical fertilizer, power industry etc. under nominal pressure of CLASS150-1500 LbsS, and dealing temperature of -29~550°C.
a. The merchandise has reasonable structure, reliable sealing, excellent performance and delightful appearance.
b. Frequent lowering and raising from the valve is transported out as the sealed surface is removed so it won't cause abrasion around the sealed surface.
c. The Plug valves's characteristic double-direction flow makes installation and employ easier.
d. The types of materials from the parts and dimensions of flanges could be reasonably configured according the particular operation condition from the needs from the clients, in order to satisfy the various needs of engineering.
When the lift plug valve comes to procedure for frequent lowering and raising from the valve, when opening the valve, to begin with, turn the hands wheel to help make the plug lifted and separated using the sealed surface, then turn the handle by 900 to help make the funnel of plug towards the funnel of valve body, so the valve is opened up when closing the valve, to begin with, turn the handle by 900 to help make the funnel of plug vertical towards the funnel of valve body, after which turn the hands wheel to descend the plug, so the valve is closed.
Specifications
Structural formation |
BB-BG-OS &Y |
Diving manner |
Hand wheel, bevel gear, wrench |
Design standard |
AP1599, AP16D |
Face to face |
ASME B16.10 |
Flange end |
ASME B 16.5 |
Test &inspection |
AP1598.AP16D |
Performances
PN(Lbs) |
Shell Test (MPa) |
Sealing Test (MPa) |
Suitable Temperature |
Suitable Medium |
150 |
3.0 |
2.2 |
≤ 550°C |
Water Oil & Gas |
300 |
7.5 |
5.5 |
600 |
15.0 |
11.0 |
900 |
22.5 |
16.5 |
1500 |
37.5 |
27.5 |
Materials
NO |
Part Name |
Material |
1 |
Body |
ASTM A216-WCB A 217-WC1,WC6,WC9,C5, ASTM A351-CF8,CF8M,CF3,CF3M |
2 |
Plug |
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A 217-WC1,WC6,WC9,C5, ASTM A351-CF8,CF8M,CF3,CF3M |
3 |
Gasket |
Flexible graphite+stainless steel |
4 |
Cover |
ASTM A216-WCB A 217-WC1,WC6,WC9,C5, ASTM A351-CF8,CF8M,CF3,CF3M |
5 |
Bolt |
ASTM A193-B7,A193-B8,A193-B8M |
6 |
Nut |
ASTM A194-2H,A194-8,A194-8M |
7 |
Packing |
Flexible graphite+304 |
8 |
Gland |
ASTM A216-WCB A 217-WC1,WC6,WC9,C5, ASTM A351-CF8,CF8M,CF3,CF3M |
9 |
Wrench |
ASTM A216-WCB, ASTM A351-CF8,CF8M,CF3,CF3M |
10 |
Yoke nut |
ZQA 19-4 |
11 |
Hand wheel |
ASTM A536 Gr.60-40-18 ,ASTM A216-WCB |
Dimensions and Weights
Pressure |
150 Lbs |
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
L-RF |
108 |
117 |
127 |
140 |
165 |
178 |
190 |
203 |
229 |
245 |
267 |
292 |
330 |
356 |
381 |
|
L-BW |
152 |
178 |
203 |
216 |
229 |
267 |
305 |
330 |
356 |
381 |
394 |
457 |
533 |
610 |
686 |
|
H |
190 |
195 |
225 |
160 |
280 |
310 |
340 |
395 |
435 |
470 |
535 |
590 |
630 |
680 |
720 |
|
W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
|
Weight(kg) |
9 |
10 |
11 |
17 |
19 |
23 |
25 |
30 |
55 |
82 |
98 |
130 |
178 |
250 |
380 |
|
Pressure |
300 Lbs |
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
L-RF |
104 |
152 |
165 |
178 |
190 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
762 |
|
L-BW |
152 |
178 |
203 |
216 |
229 |
267 |
305 |
330 |
356 |
381 |
457 |
521 |
559 |
635 |
762 |
|
H |
190 |
195 |
225 |
260 |
280 |
310 |
340 |
395 |
435 |
470 |
535 |
590 |
630 |
680 |
720 |
|
W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
|
Weight(kg) |
10 |
12 |
14 |
19 |
21 |
28 |
34 |
39 |
75 |
95 |
135 |
200 |
255 |
415 |
650 |
|
Pressure |
600 Lbs |
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
L-RF,BW |
165 |
190 |
216 |
229 |
241 |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
889 |
|
H |
190 |
195 |
225 |
260 |
280 |
310 |
340 |
395 |
435 |
470 |
535 |
590 |
630 |
680 |
720 |
|
W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
|
Weight(kg) |
13 |
14 |
19 |
23 |
25 |
32 |
40 |
55 |
105 |
139 |
300 |
440 |
730 |
1150 |
1570 |
|
Pressure |
900 Lbs |
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
L-RF,BW |
165 |
190 |
216 |
229 |
241 |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
889 |
|
H |
190 |
195 |
225 |
260 |
280 |
310 |
340 |
395 |
435 |
470 |
535 |
590 |
630 |
680 |
720 |
|
W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
|
Weight(kg) |
13 |
14 |
19 |
23 |
25 |
32 |
40 |
55 |
105 |
139 |
300 |
440 |
730 |
1150 |
1570 |
|
Note: 4" or above with gear

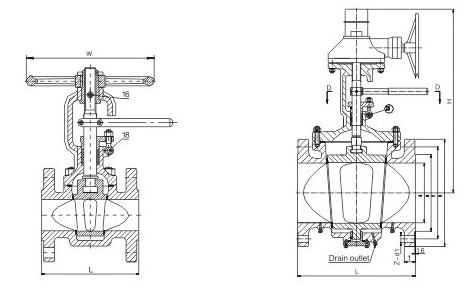

Fig.1: Butt Welded Lift Plug Valve
Fig.2: Jacketed Lift Plug Valve
