Specifications:
Butterfly Valve type: Triple Offset
Body material: Cast Steel
Size: 2 inch to 56 inch
Pressure Rating : 150LB, 300LB
End connection: Lug Wafer
Product Range:
Body Material: Stainless Steel, Carbon Steel, Bronze C95800, Alloy Steel, Titanium, 904l, Cast Steel.
Normal diameter: 2"~80" (DN50~DN2000).
End connection: Flanged, Butt Welded, Wafer, Lugged
Pressure range: PN10, PN16, PN25, PN40, PN63, PN100, 150LB, 300LB, 600LB
Flange standard : EN 1092-1, JIS, DIN, ANSI

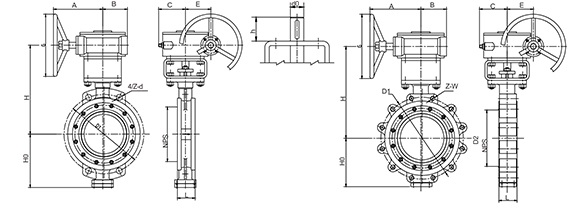

Lug Wafer Type Butterfly Valve Structure Drawing:
150LB Dimensions Table:
NPS |
L |
Flange Dimensions |
Dimensions |
Top Flange |
Weight(Kg) |
D1 |
Z-Φd |
Z-W |
D0 |
H |
A |
B |
C |
E |
G |
ISO 5211 |
d0 |
h |
Wafer |
Lug |
2” |
43 |
120.7 |
4-Φ19 |
4-5/8-11UNC |
65 |
195 |
144 |
56 |
56 |
50 |
180 |
F07 |
16 |
35 |
5 |
6 |
2.5” |
46 |
139.7 |
4-Φ19 |
4-5/8-11UNC |
75 |
210 |
144 |
56 |
56 |
50 |
180 |
F07 |
16 |
35 |
8 |
9 |
3” |
48 |
152.4 |
4-Φ19 |
4-5/8-11UNC |
105 |
215 |
144 |
56 |
56 |
50 |
180 |
F07 |
16 |
35 |
10 |
11 |
4” |
54 |
190.5 |
8-Φ19 |
8-5/8-11UNC |
120 |
235 |
144 |
56 |
56 |
50 |
180 |
F07 |
18 |
40 |
13 |
15 |
5” |
57 |
216 |
8-Φ22 |
8-3/4-10UNC |
130 |
285 |
200 |
75 |
96 |
63 |
300 |
F10 |
22 |
45 |
23 |
25 |
6” |
57 |
241.3 |
8-Φ22 |
8-3/4-10UNC |
170 |
300 |
200 |
75 |
96 |
63 |
300 |
F10 |
25 |
50 |
25 |
30 |
8” |
64 |
298.5 |
8-Φ22 |
8-3/4-10UNC |
200 |
340 |
230 |
90 |
120 |
80 |
350 |
F12 |
30 |
60 |
33 |
38 |
10” |
71 |
362 |
12-Φ25 |
12-7/8-9UNC |
240 |
380 |
230 |
90 |
120 |
80 |
350 |
F12 |
35 |
70 |
50 |
66 |
12” |
81 |
431.8 |
12-Φ25 |
12-7/8-9UNC |
285 |
425 |
260 |
152 |
165 |
125 |
400 |
F14 |
40 |
80 |
67 |
90 |
14” |
92 |
476.3 |
12-1-8UNC |
12-1-8UNC |
320 |
505 |
260 |
152 |
165 |
125 |
400 |
F14 |
45 |
90 |
130 |
140 |
16” |
102 |
539.8 |
16-1-8UNC |
16-1-8UNC |
360 |
510 |
260 |
152 |
165 |
125 |
400 |
F16 |
50 |
100 |
140 |
170 |
18” |
114 |
578 |
16-11/8-8UN |
16-11/8-8UN |
385 |
565 |
260 |
152 |
165 |
125 |
400 |
F16 |
50 |
100 |
188 |
225 |
20” |
127 |
635 |
20-11/8-8UN |
20-11/8-8UN |
410 |
590 |
290 |
180 |
198 |
160 |
500 |
F25 |
55 |
110 |
270 |
287 |
24” |
154 |
749.3 |
20-11/4-8UN |
20-11/4-8UN |
454 |
685 |
418 |
200 |
215 |
200 |
600 |
F25 |
70 |
130 |
310 |
390 |
28” |
165 |
863.6 |
28-11/4-8UN |
28-11/4-8UN |
545 |
755 |
418 |
200 |
215 |
200 |
600 |
F30 |
80 |
130 |
430 |
508 |
32” |
190 |
977.6 |
28-11/2-8UN |
28-11/2-8UN |
575 |
825 |
510 |
235 |
270 |
263 |
700 |
F30 |
90 |
160 |
535 |
632 |
36” |
203 |
1085.8 |
32-11/2-8UN |
32-11/2-8UN |
655 |
960 |
510 |
235 |
270 |
263 |
700 |
F30 |
100 |
170 |
708 |
836 |
40” |
216 |
1200.2 |
36-11/2-8UN |
36-11/2-8UN |
725 |
1015 |
510 |
235 |
270 |
263 |
700 |
F35 |
110 |
170 |
1090 |
1286 |
48” |
254 |
1422.4 |
44-11/2-8UN |
44-11/2-8UN |
860 |
1150 |
550 |
275 |
335 |
333 |
800 |
F35 |
130 |
200 |
1455 |
1717 |
56” |
279 |
1651 |
48-13/4-8UN |
48-13/4-8UN |
995 |
1345 |
550 |
275 |
335 |
333 |
800 |
F40 |
150 |
200 |
1750 |
2065 |
