Lever Opreated Wafer Butterfly Valve D71X/J

Wafer butterfly valve is wafer butterfly valve developed with the technology introduced from foreign country, with the advantage of simple structure, good seal performance, easy to open, long service life, easy to maintain. Wafer butterfly valve is widely used in various pipelines for drainage. Wafer butterfly valve can correctly show the open/close status of valve, so ductile iron butterfly valve is widely used in fire control system.

Advantages:
1. Wafer butterfly valve is small operating torque, worm gear actuator.

2. Wafer butterfly valve is easy to operate.

3. Wafer butterfly valve suitable to install handle, worm gear drive, pneumatic, hydraulic, electric and other control devices.

4. Wafer butterfly valve can be installed in any location, easy maintenance.

5.  Wafer butterfly valve is sealing performance is reliable and zero leakage.


Specification
Nominal Diameter DN50-DN1200
Nominal Pressure PN0.6MPa~2.5 Mpa
Design Standard GB/T12238-1989
Flange Standard GB, JB, ANSI, etc
Face to Face GB/T12221-1005
Pressure Testing GB/T13927-1992; JB/T9092-1999
Medium Air, Water, Sewage, Steam, Gas, Oil, etc.

Material

Parts Name Material
Valve Body Gray cast iron, Ductile iron,Cast steel,Alloy steel,Stainless steel
Disc Gray cast iron, Ductile iron,Cast steel,Stainless steel, Special material
Stem 45#, 2Cr13, Stainless steel
Sealing Ring Kinds of rubber, PTFE
Packing  Flexible Graphite

Sealing Material and Applicable Temperature
Name Code MAX Temp. Min Temp. Working Temp.
CR X or J 82℃ -40℃ 0-80℃
NBR XA or JA 93℃ -40℃ -20-82℃
EPDM XB or JB 150℃ -40℃ -40-125℃
PTFE F or XC, JC 232℃ -268℃ -30-150℃
SI XD or JD 250℃ -70℃ -70-150℃
VITON XE or JE 204℃ -23℃ -23-150℃
NR X1 85℃ -20℃ -20-85℃
PA N 93℃ -73℃ -30-93℃

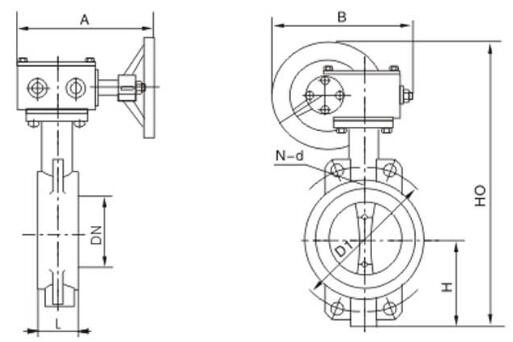

Wafer Butterfly Valve drawing

Wafer Butterfly Valve Dimensions
