JHL41X Multifunctional Check Valve, WCB, SS 304 / 316 / 304L / 316L
Key Specifications / Features
Model No.: SJ-CV-17 Hits: 55
China Multifunctional Check Valve Manufacturer Shinjo Supplies JHL41X Multifunctional Check Valve, WCB, SS304, SS316.
Request a quote
Tags:
Detail Information

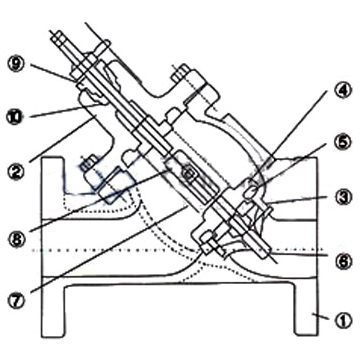

JHL41X-type flange multifunctional three-in-one Check Valves is installed on the pump outlet of the general construction, the supply and drainage water for apartments and factories, heating and cooling water treatment, and boiler condensate water, secondary water supply pipes. It is used to prevent the media backflow in pipes that caused by the pump stop running.
1. Using one valve, can successfully complete three kinds of functions: no water hammer check valves, gate valve, balance valve
2. When Pump stops, the spring force closes the disc first, and thus to prevent water hammer.1. Using one valve, can successfully complete three kinds of functions: no water hammer check valves, gate valve, balance valve
3. Through regulating the opening, you can adjust the pump output
4. By using indicator, you can confirm the valve opening degree with eyes.
5. The sealing gasket is made of NBR, and thus will not leak, can absorb the impact force.
6. Spring is made of stainless steel, thus has strong corrosive resistance.
7. It can save water yield equipment materials and cost, reduce installation space.
8. As the shape and advanced structure are streamlined, so the pressure drop is small.
9. As the play the role of bypass, so that it hasthe function of recovering the export inside pipe water, and supplement diversion when the import side appears vacuum.
10. Horizontal pipes, vertical pipes can both be installed.
Dimensions & Weights
| Nominal Diameter DN |
Connection | Length L (mm) |
Flange Diameter (mm) |
Opening Height H (mm) |
PCD (mm) |
n - Φd | Weight Kg |
| 50 | Flanged | 230 | 160 | 210 | 125 | 4*18 | 16 |
| 65 | 290 | 180 | 250 | 145 | 4*18 | 24 | |
| 80 | 310 | 195 | 290 | 160 | 8*18 | 35 | |
| 100 | 350 | 215 | 320 | 180 | 8*18 | 50 | |
| 125 | 400 | 245 | 380 | 210 | 8*18 | 72 | |
| 150 | 480 | 280 | 420 | 240 | 8*23 | 98 | |
| 200 | 550 | 335 | 500 | 195 | 12*23 | 150 | |
| 250 | 620 | 405 | 680 | 355 | 12*25 | 230 | |
| 300 | 700 | 460 | 730 | 410 | 12*25 | 390 | |
| 350 | 787 | 520 | 830 | 470 | 16*25 | 500 |
