High Pressure Wafer Butterfly Valve, 6.3/10.0 Mpa

High Pressure Wafer Butterfly Valve, 6.3 / 10.0 Mpa
High Pressure Wafer Butterfly Valve, 6.3 / 10.0 Mpa

Key Specifications / Features

Model No.: Hits: 17

China Wafer Butterfly Valve Manufacturer Shinjo Supplies High Pressure Wafer Butterfly Valve, 6.3/10.0 Mpa, Size from DN80 to DN600 mm (3 inch to 24 inch).
Request a quote

Next: Lug Wafer Type Butterfly Valve, ANSI 150 / 300 LB

Previous: Metal Seat Wafer Ends Butterfly Valve, PN25/40

Detail Information

Specifications:

Butterfly Valve type: Triple Offset
Body material: Carbon Steel
Size: DN80 to DN600 mm (3 inch to 24 inch)
Pressure  : PN63, PN100
End connection: Wafer


Product Range:

Body Material: Stainless Steel, Carbon Steel, Bronze C95800, Alloy Steel, Titanium, 904l, Cast Steel.
Normal diameter: 2"~80" (DN50~DN2000).
End connection: Flanged, Butt Welded, Wafer, Lugged
Pressure range: PN10, PN16, PN25, PN40, PN63, PN100, 150LB, 300LB, 600LB
Flange standard : EN 1092-1, JIS, DIN, ANSI

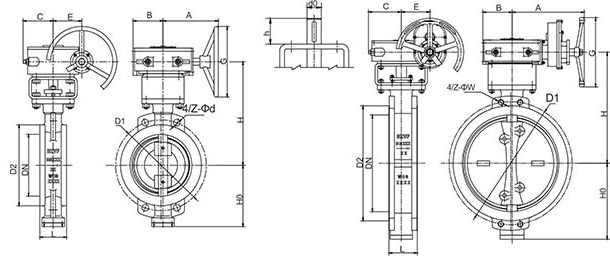

High-Pressure Wafer Butterfly Valve Structure Drawing:

High-Pressure Wafer Butterfly Valve Structure Drawing

PN63 Dimensions Table:
DN L Flange Dimensions Dimensions Top Flange Weight（kg）
D1 D2 Z-Φd（W） H0 H A B C E G ISO 5211 d0 h
80 64 170 138 8-Φ22(M20) 120 270 144 56 56 50 180 F07 18 40 20
100 64 200 162 8-Φ26(M24) 135 285 200 75 96 63 300 F10 22 45 23
125 70 240 188 8-Φ30(M27) 160 305 200 75 96 63 300 F10 25 50 34
150 78 280 218 8-M30 215 340 230 90 120 80 350 F12 30 60 49
200 102 345 285 12-M33 220 410 230 90 120 80 350 F12 35 70 62
250 117 400 345 12-M33 265 505 260 152 165 125 400 F14 45 90 115
300 140 460 410 16-M33 300 525 290 180 198 160 500 F25 55 110 207
350 155 525 465 16-M36 310 540 290 180 198 160 500 F25 60 120 259
400 178 585 535 16-M39 335 650 418 200 215 200 600 F25 70 130 326
500 216 705 615 20-M45 415 730 510 235 270 263 700 F30 90 160 429
600 232 820 735 20-M52 490 770 510 235 270 263 700 F30 90 160 684

PN100 Dimensions Table:
DN L Flange Dimensions Dimensions Top Flange Weight（Kg）
D1 D2 ZΦ d（W） D0 H A B C E G ISO 5211 d0 h
80 64 180 138 8-Φ26(M24) 120 270 144 56 56 50 180 F07 18 40 23
100 64 210 162 8-Φ30(M27) 135 285 200 75 96 63 300 F10 25 50 26
125 70 250 188 8-Φ33(M30) 160 325 230 90 120 80 350 F12 30 60 38
150 78 290 218 12-M30 215 410 230 90 120 80 350 F12 35 70 56
200 102 360 285 12-M33 220 425 260 152 165 125 400 F14 45 90 96
250 117 430 345 12-M36 265 505 260 152 165 125 400 F16 50 100 130
300 140 500 410 16-M39 295 545 290 180 198 160 500 F25 60 120 227
350 155 560 465 16-M45 335 570 418 200 215 200 600 F25 70 130 290
400 178 620 535 16-M45 390 620 418 200 215 200 600 F30 80 130 367
500 216 760 615 20-M52 450 760 510 235 270 263 700 F30 100 160 476
600 232 875 735 20-M56 550 850 550 275 335 333 800 F35 120 190 659
