GW Type Scotch Yoke Pneumatic Actuator, Single / Double Acting

GW Type Scotch Yoke Pneumatic Actuator, Single / Double Acting Operated

Key Specifications / Features

Model No.: SJ-GW Hits: 178

China GW Type Scotch Yoke Pneumatic Actuator Manufacturer, Shinjo Provides Single Acting and Double Acting Operated Scotch Yoke Pneumatic Actuator Data Sheet, Dimensions, Standard, Drawings.
Request a quote

Detail Information

Technical Parameter of GW Type Scotch Yoke Pneumatic Actuator


Design

Scotch Yoke Pneumatic Actuator

Single acting、Double acting

Output

See Data sheet below

Travel

0°~90°(±5°adjustable)

Air supply

0.3~0.6MPa

Ambient Temperature

Standard Type -29℃~120℃

High Tempreature Type >120℃

Low Tempreature Type <-29℃

Coating

Anodic Oxidation 、Baking、Epoxy Resin

Accessories

Positioner、Filter Regulator、Air Control Valve

Limit Switch Box、Solenoid Valve、Lock Valve、Speed Regulator


Detail s of Using GW Type Scotch Yoke Pneumatic Actuator

Before using pneumatic actuator: first determine the torque required by the valve, considering the pipeline medium; Increased safety value by 25% for water vapor or non-lubricated media; Non-lubricated dry gas medium increases the safety value by 60%; The safety value of non-lubricated gas transported granular powder medium is increased by 100%. For dry clean, frictionless lubricating medium, increase the safety value by 20%, and then according to the air source working pressure, find the double-acting or single-acting torque data table, you can get the accurate actuator type.

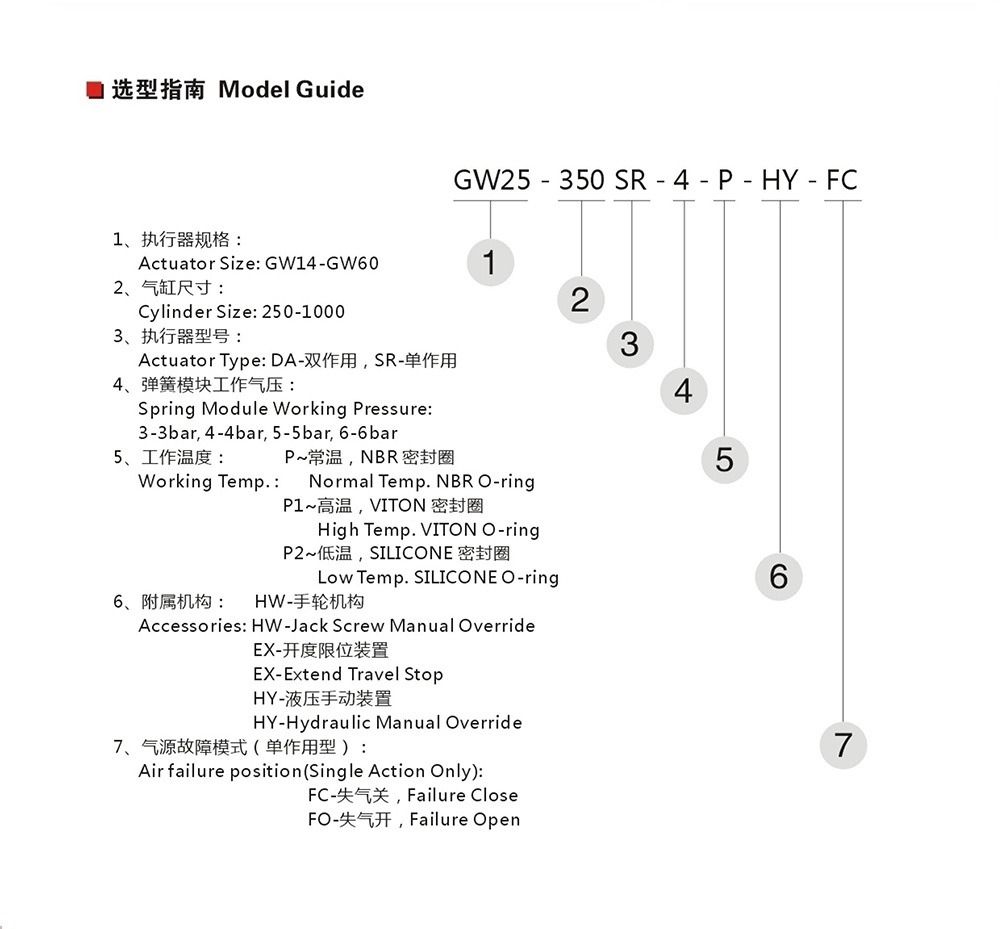

Actuator Model Guide

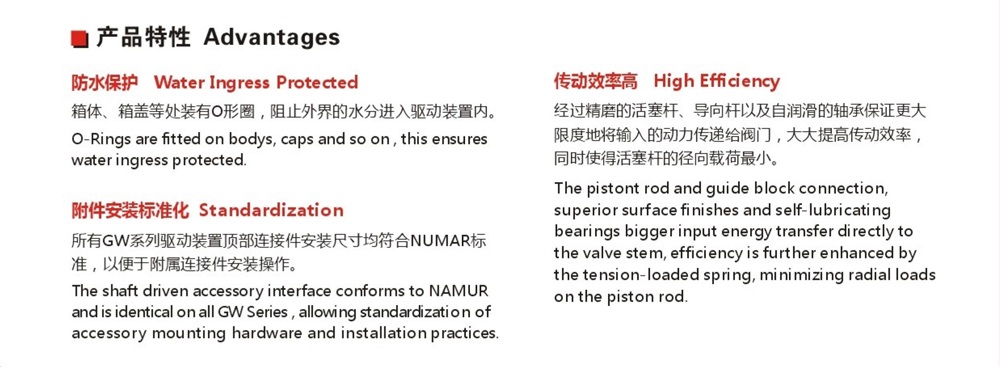

Product Futures
GW Type Scotch Yoke Pneumatic Actuator
Design Detail

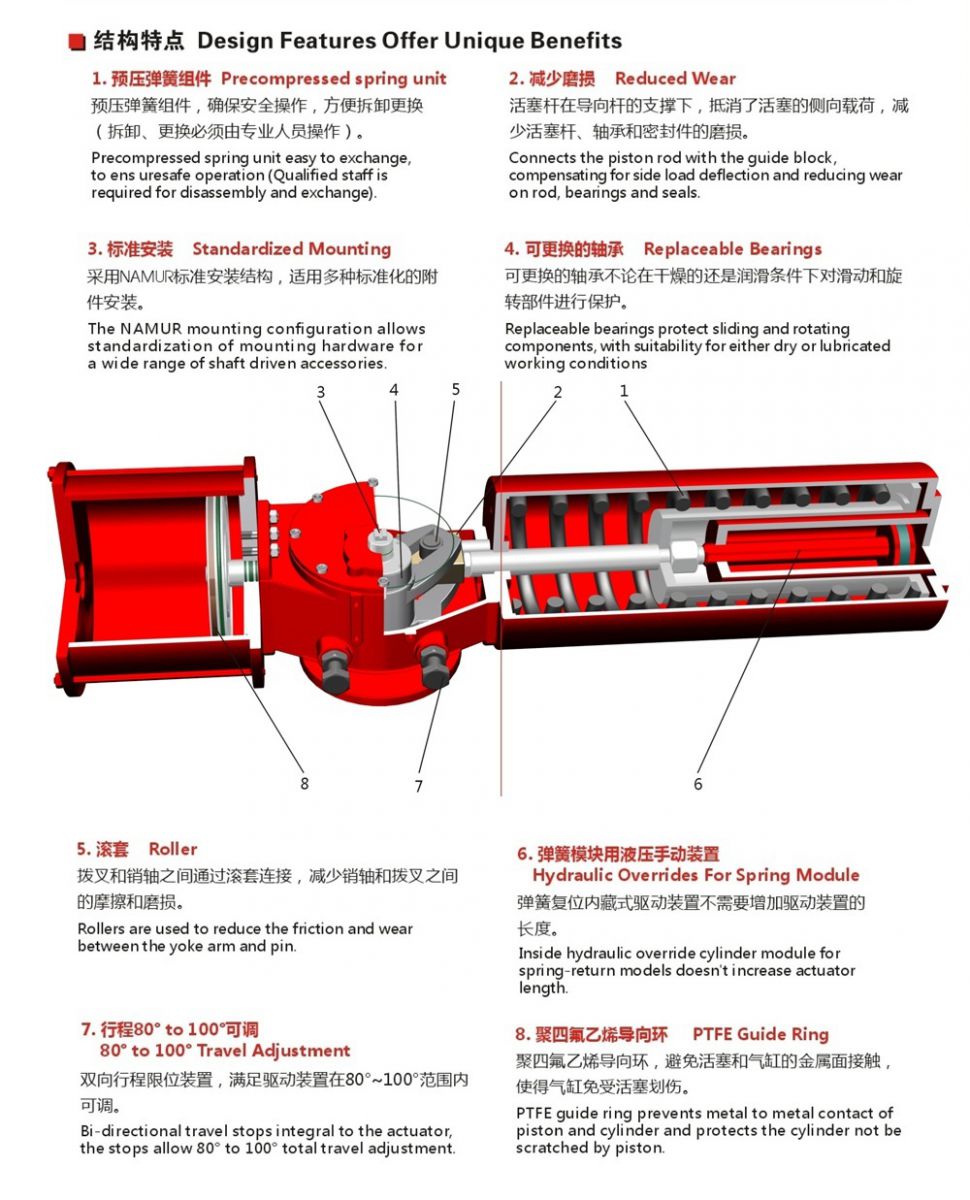

Pneumatic Actuator Structure Futures

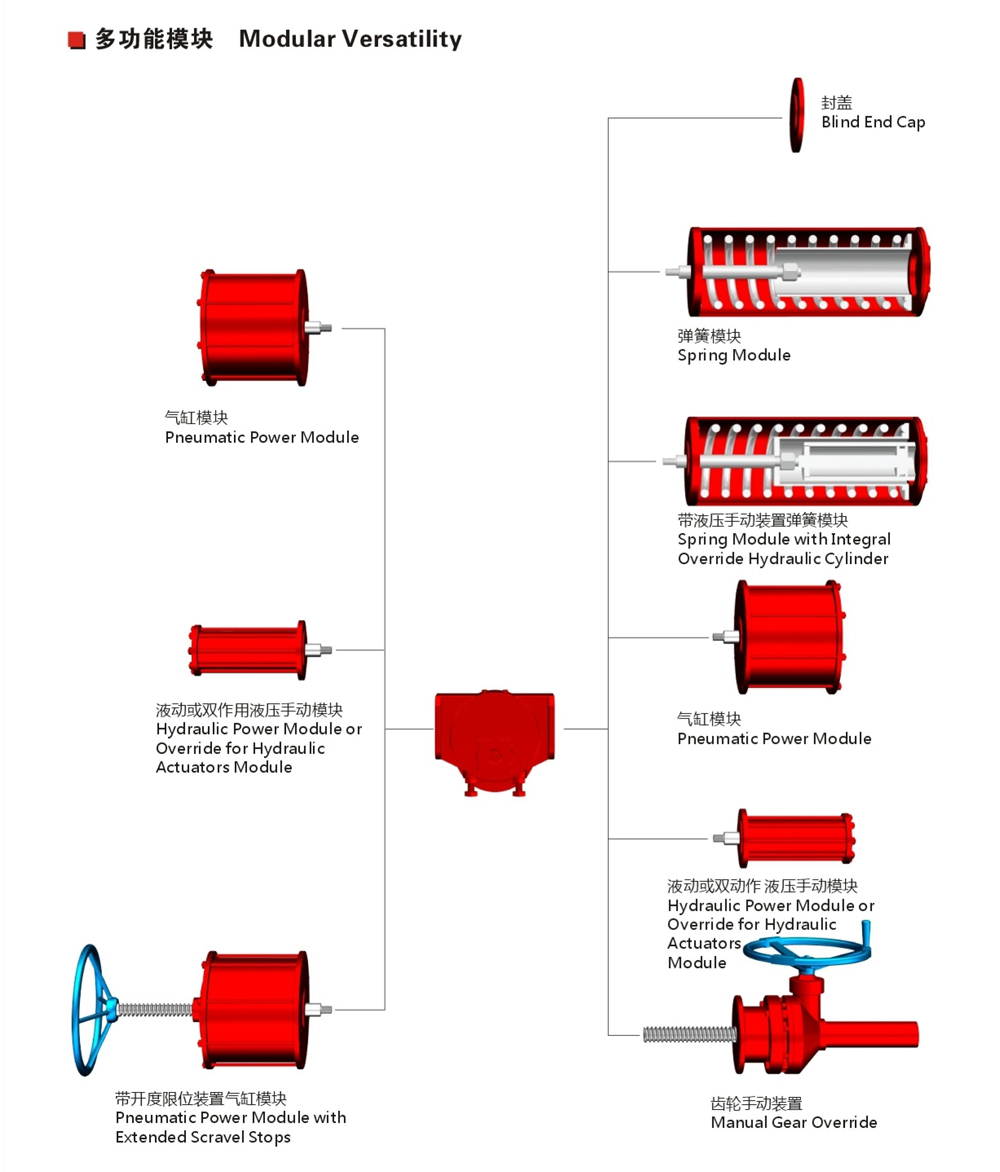

Modular Versatility

Torque Characteristics

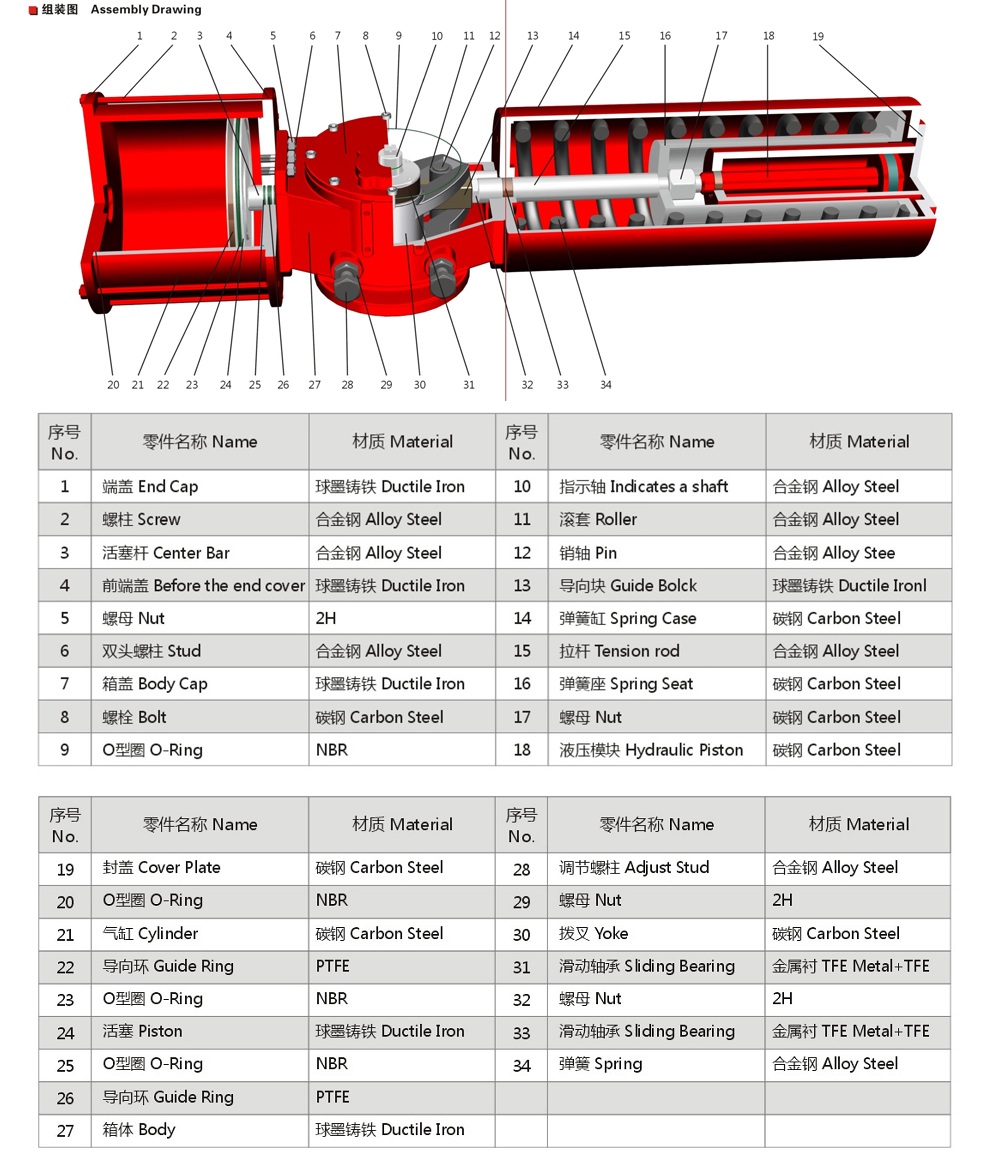

Actuator Parts Material

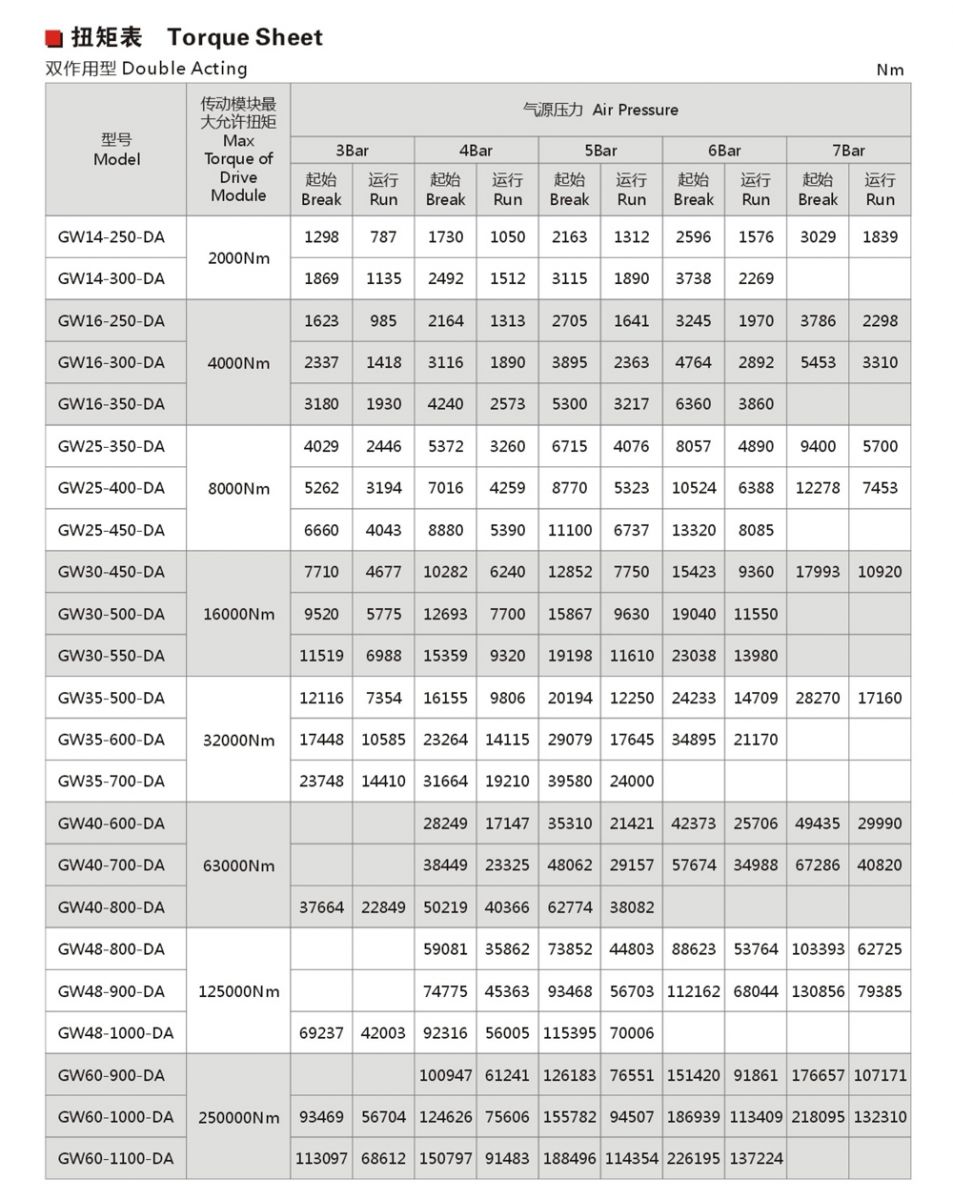

Double Acting Actuator Torque Sheet

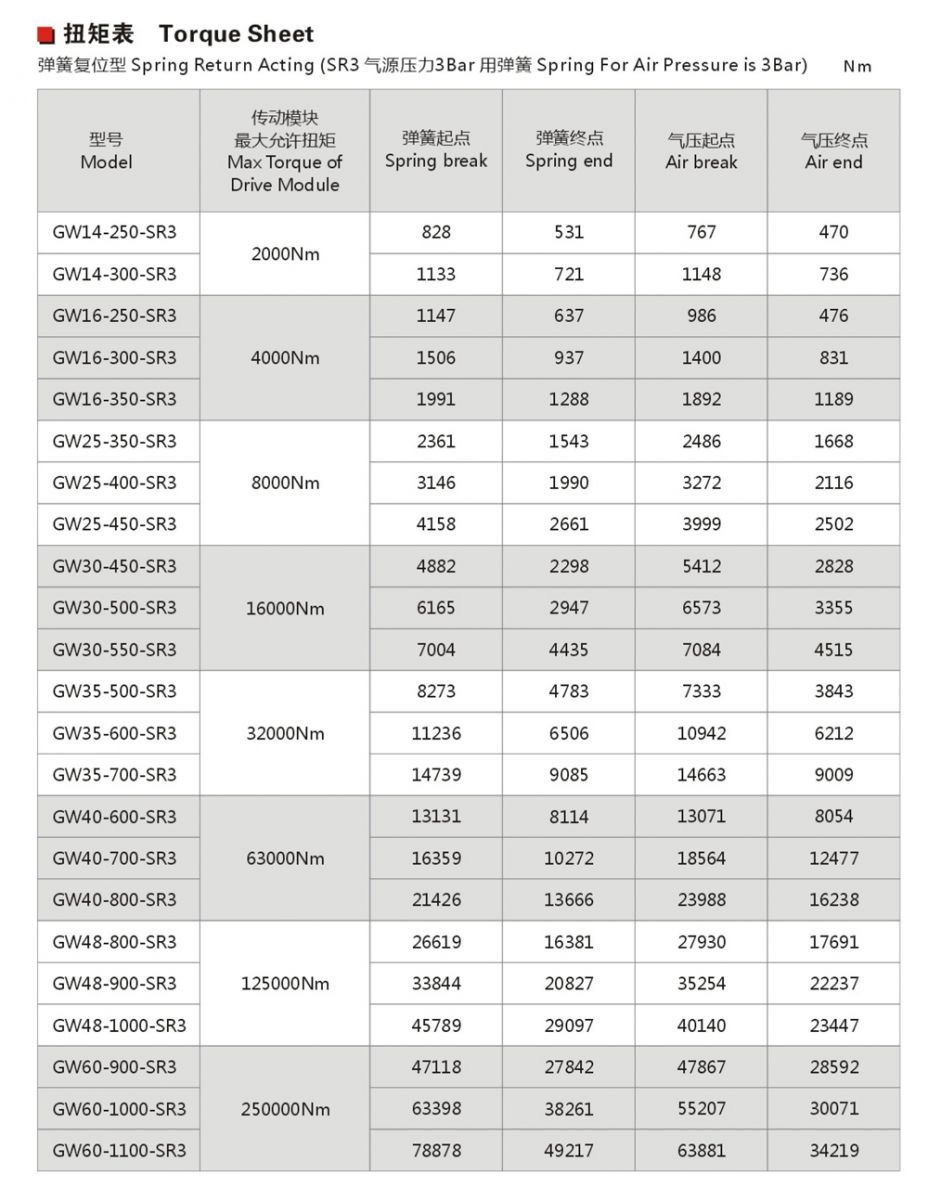

Single Acting Actuator Torque Sheet For Air Pressure 3 Bar

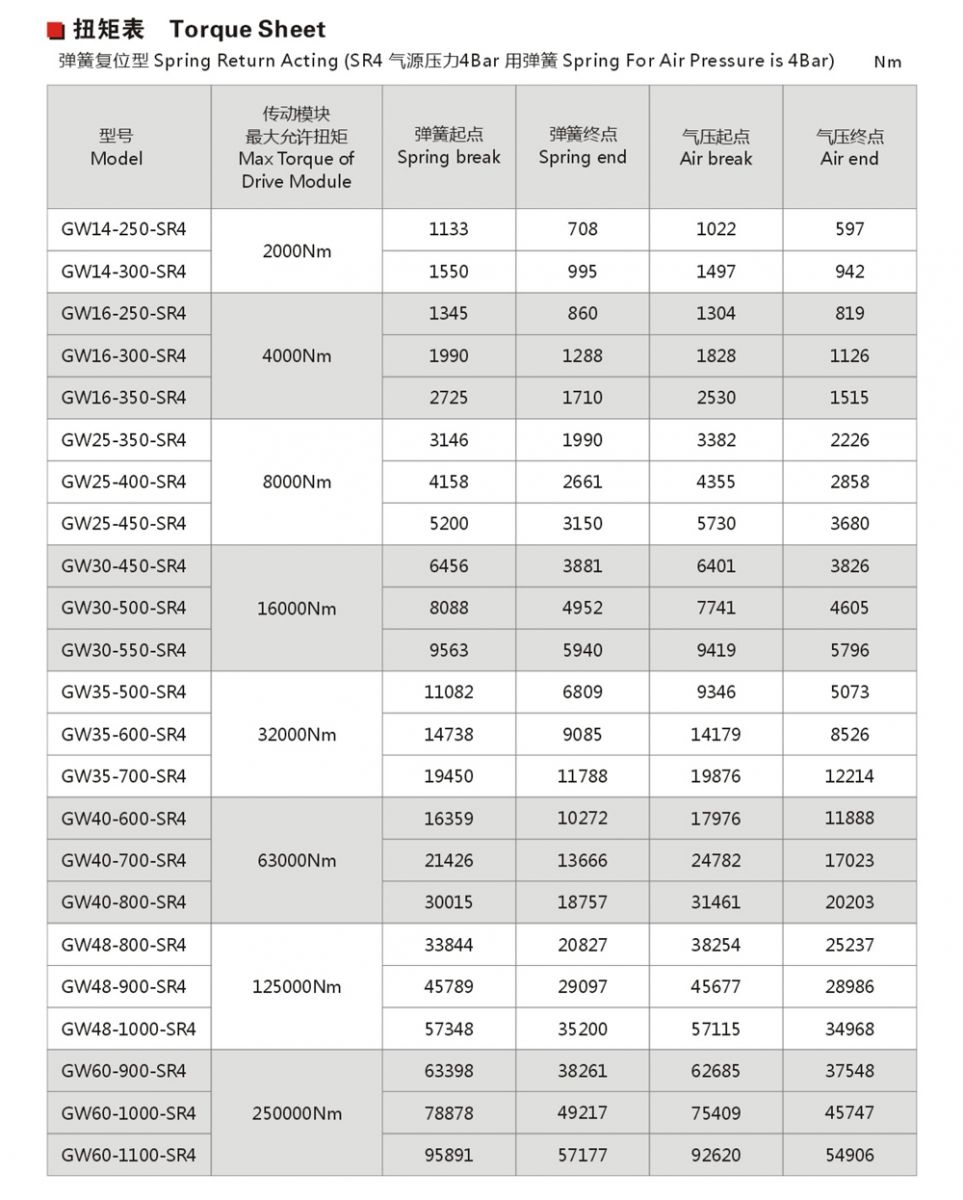

Single Acting Actuator Torque Sheet For Air Pressure 4 Bar

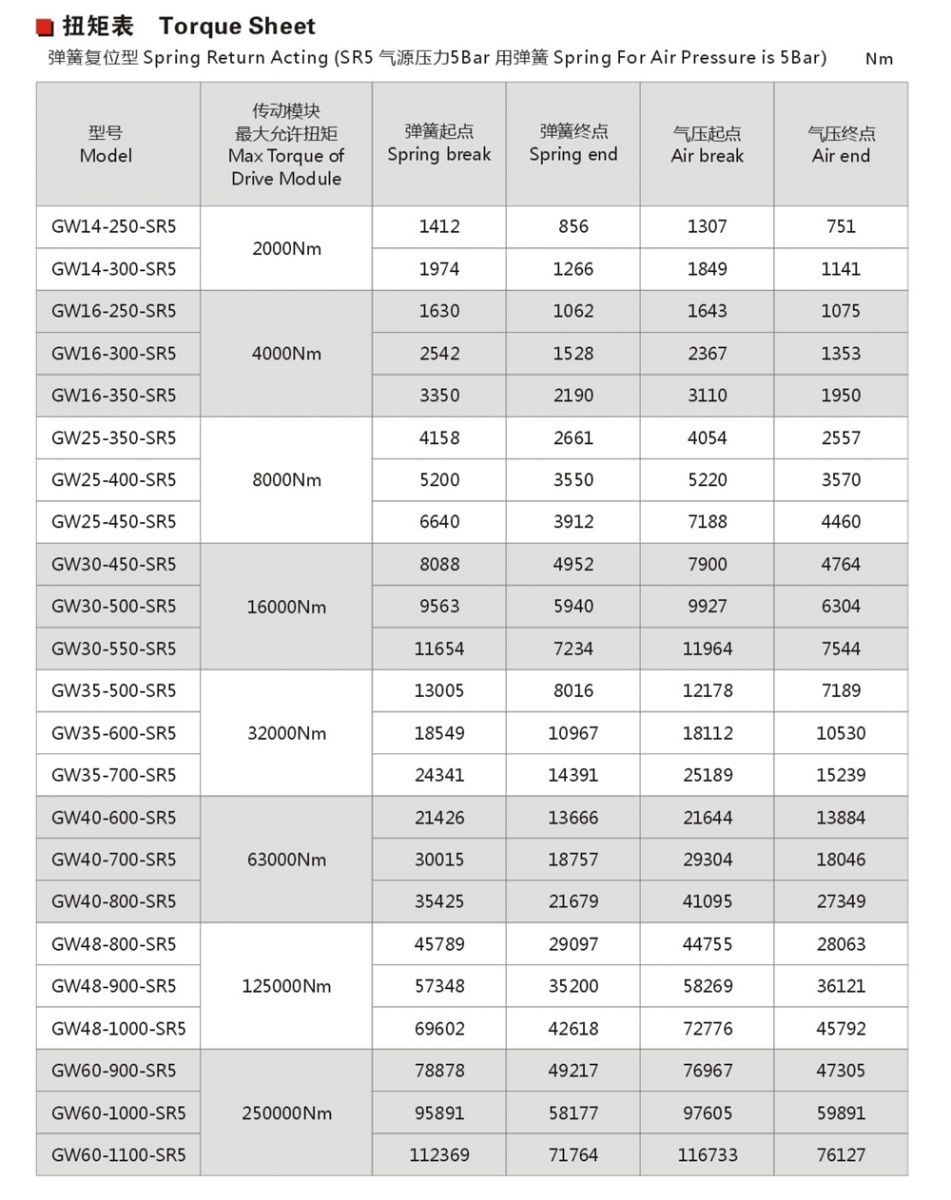

Single Acting Actuator Torque Sheet For Air Pressure 5 Bar
Single Acting Actuator Torque Sheet For Air Pressure 6 Bar

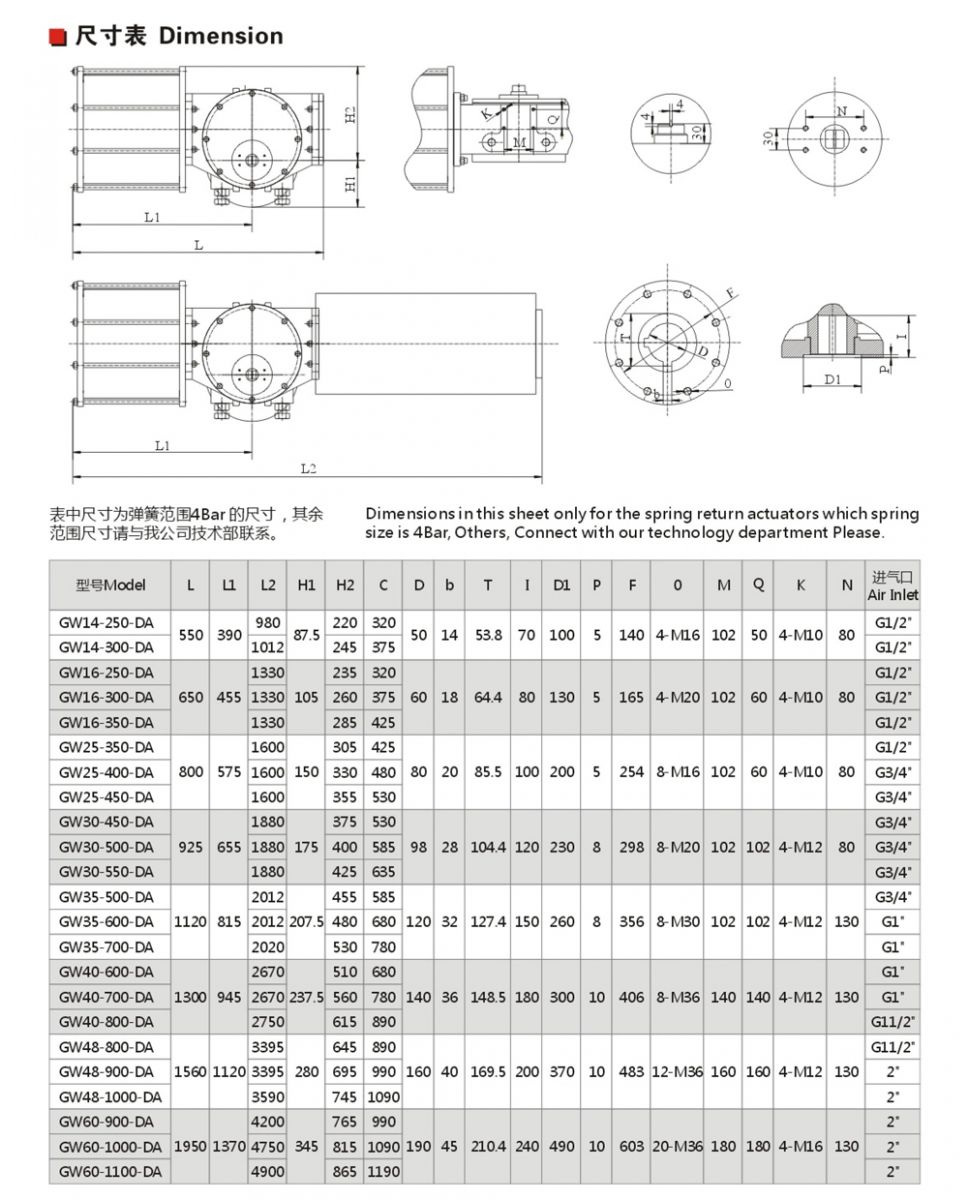

GW Type Scotch Yoke Pneumatic Actuator Dimensions Drawing
