Electric Actuated Knife Gate Valve

Electric Actuated Knife Gate Valve, Stainless Steel, Duplex Stainless Steel, 904L, Titanium

Key Specifications / Features

Model No.: SJ-GV-10 Hits: 128

Electric Actuated Knife Gate Valve, Stainless Steel, Duplex Stainless Steel, 904L, Titanium
Request a quote

Detail Information

PZ943 Electric Actuated Knife Gate Valve  is one kind of  knife gate valve for slurry service, knife gate valve can used to slice through slurry, mud or sewerage, electric knife gate valve is used fro-normal positive shut off. Electric knife gate valve is a gate valve design that is distinguished from the standard design by the use of a simple metal plate for the knife gate and the absence of a bonnet; also called a electric knife gate valve.
Electric knife gate valve and slurry knife gate valve is a uni-directional or bi-directional valve designed for general industrial service applications. Electric knife gate valve used for pressure tight isolation of solid-liquid mixes in water and waste water treatment plants and pumping stations, paper and pulp plants, power plants and mining industry.


Specification
Nominal Diameter DN50-DN600
Nominal Pressure PN0.6MPa~1.6MPa


Working Temperature
Rubber≤80℃
H/Y≤425℃


Test Pressure
Shell: 1.5MPa -2.4MPa
Seal: 1.1MPa - 1.8MPa
Medium Pulp, Sewage, Coal Slurry, Ash, Syrup, Slag and other mixtures

Material

Parts Name Material
Bonnet SS Steel, Carbon Steel, Gray Cast Iron
Disc SS Steel, Carbon Steel
Stem Stainless steel
Sealing Surface Rubber, PTFE, Stainless steel, Hard alloy

Structure

PZ943 Electric Actuated Knife Gate Valve Drawing

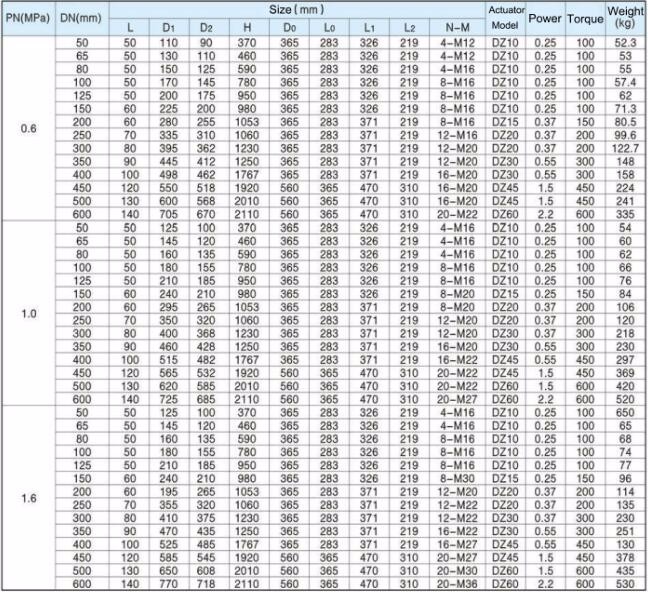

PZ943 Electric Actuated Knife Gate Valve Dimensions
