Conventional Safety Relief Valve (PRV), Orifice Area G
Key Specifications / Features
Model No.: Hits: 82
China Conventional Safety Relief Valve (PRV) Manufacturer Shinjo Supplies Conventional Safety Relief Valve (PRV), Orifice Area G.
Request a quote
Tags:
Detail Information
A Conventional Safety Relief Valve (PRV) uses a spring to keep the valve closed until the process nears the set pressure. The spring force pushes the valve’s disc against the nozzle seat keeping the valve closed. Process pressure exerts an opposing force on the disc. When the process pressure force on the disc overcomes the opposing spring force, the disc lifts and the valve begins to relieve pressure.
Performance
Conventional Safety Relief Valve (PRV), Orifice Area G Size Dimensions
Performance
- The allowable tolerance of the set pressure: ≤±3% of the set pressure
- Over pressure: ≤±10% of the set pressure
- Blowdown: ≤±10% of the set pressure
- Tightness: the valve has good seat tightness conforms to API 527

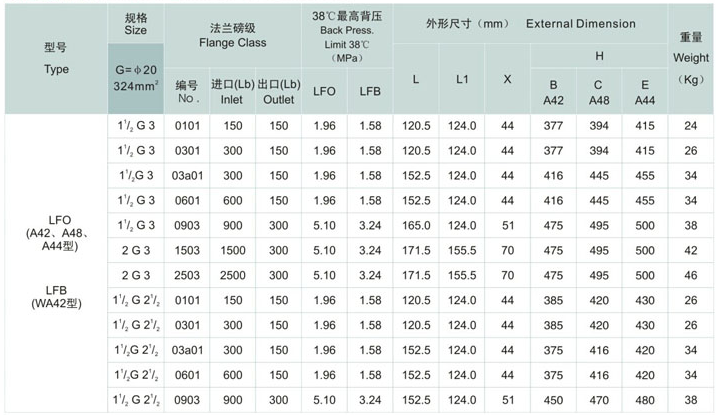

Conventional Safety Relief Valve (PRV), Orifice Area G Size Dimensions
