Class 600LB-900LB Floating
Ball Valves,, Full / Reduced Bore
Performance:
Size: 1/2"~4"(DN 15 - 200 mm).
Class: 150~2500 (PN 1.6 - 42 MPa).
Split Body, Forged Carbon Steel.
Floating Ball, Full & Reduced Bore.
Anti-Static Device.
Blow-out Proof Stem.
Fire Safe Design.
Low Emission.
Design: ASME B16.34/BS 5351.
Face to Face: ASME B16.10.
End to End: ASME B16.10.
End Flange: ASME B16.5.
BW End: ASME B16.25.
Test: API 598 / BS 6755.
Fire Safe Test: API 607/API 6FA.
Special: NACE MR-01-75.

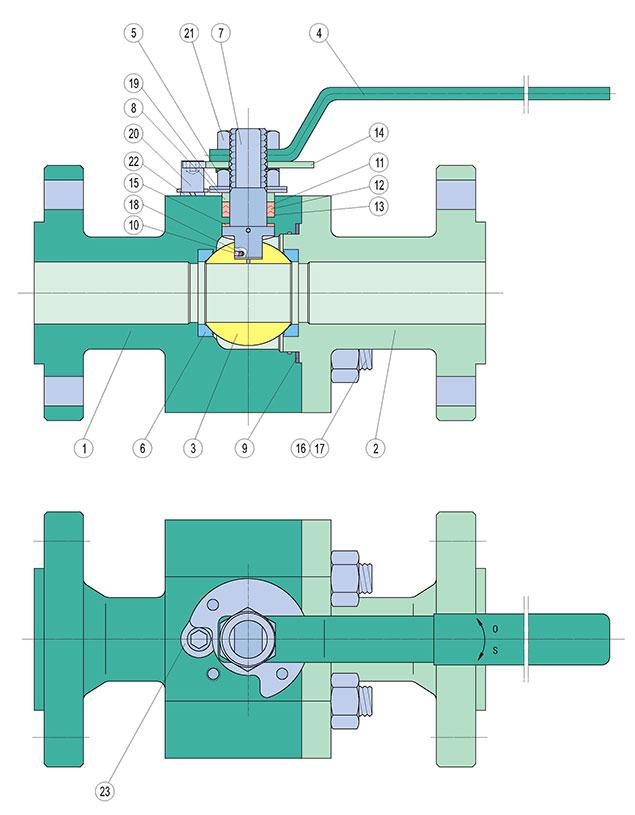

No. |
Part |
A105/ENP |
A105/316 |
F316/316 |
LF2/316NACE |
1 |
Body |
ASTM A105 |
ASTM A105 |
ASTM A182-F316 |
ASTM A350-LF2 |
2 |
Adapter |
ASTM A105 |
ASTM A105 |
ASTM A182-F316 |
ASTM A350-LF2 |
3 |
Ball |
ASTM A105/ENP |
ASTM A182-F316 |
ASTM A182-F316 |
ASTM A182-F316 |
4 |
Lever |
Carbon Steel |
Carbon Steel |
Carbon Steel |
Carbon Steel |
5 |
Locked Washer |
Carbon Steel |
Carbon Steel |
Stainless Steel |
Carbon Steel |
6 |
Seat |
PTFE / Nylon |
PTFE / Nylon |
PTFE / Nylon |
PTFE / Nylon |
7 |
Stem |
ASTM A182-F6a |
ASTM A182-F316 |
ASTM A182-F316 |
ASTM A182-F316 |
8 |
Gland |
ASTM A276-410 |
ASTM A182-F316 |
ASTM A182-F316 |
ASTM A182-F316 |
9 |
Body Gasket |
304SS+Graphite |
316SS+Graphite |
316SS+Graphite |
316SS+Graphite |
10 |
Steel Ball |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
11 |
Top Packing |
PTFE / Graphite |
PTFE / Graphite |
PTFE / Graphite |
PTFE / Graphite |
12 |
Middle Packing |
PTFE / Graphite |
PTFE / Graphite |
PTFE / Graphite |
PTFE / Graphite |
13 |
Bottom Packing |
PTFE / Graphite |
PTFE / Graphite |
PTFE / Graphite |
PTFE / Graphite |
14 |
Stop Plate |
Carbon Steel |
Carbon Steel |
Stainless Steel |
Carbon Steel |
15 |
Thrust Washer |
PTFE |
PTFE |
PTFE |
PTFE |
16 |
Body Stud |
ASTM A193-B7 |
ASTM A193-B7 |
ASTM A193-B8 |
ASTM A320-L7M |
17 |
Body Nut |
ASTM A194-2H |
ASTM A194-2H |
ASTM A194-8 |
ASTM A194-7M |
18 |
Antistatic Spring |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
19 |
Dished Spring |
Alloy Steel |
Alloy Steel |
Stainless Steel |
Alloy Steel |
20 |
Screw |
Carbon Steel |
Carbon Steel |
Stainless Steel |
Carbon Steel |
21 |
Nut |
Carbon Steel |
Carbon Steel |
Stainless Steel |
Carbon Steel |
22 |
Washer |
Carbon Steel |
Carbon Steel |
Stainless Steel |
Carbon Steel |
23 |
Locked Plate |
Carbon Steel |
Carbon Steel |
Stainless Steel |
Carbon Steel |

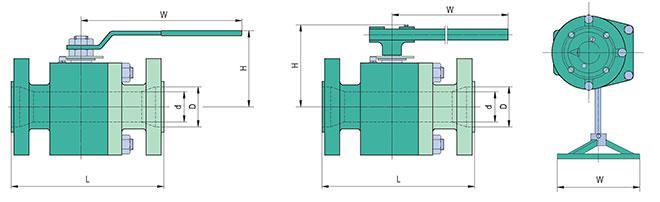

Full Bore-Dimensions and Weights:
Size |
D |
L |
H |
W |
Weight |
in |
mm |
mm |
mm |
mm |
Kg |
1/2 |
13 |
165 |
80 |
170 |
3.5 |
3/4 |
19 |
191 |
89 |
200 |
5 |
1 |
25 |
216 |
95 |
200 |
7.5 |
1-1/2 |
38 |
241 |
132 |
350 |
15 |
2 |
51 |
292 |
145 |
350 |
23 |
3 |
64 |
356 |
182 |
420 |
48 |
4 |
76 |
432 |
211 |
700 |
80 |
Size |
D |
L |
H |
W |
Weight |
in |
mm |
mm |
mm |
mm |
Kg |
1/2 |
13 |
216 |
75 |
140 |
5 |
3/4 |
19 |
229 |
91 |
180 |
8 |
1 |
25 |
254 |
108 |
250 |
10 |
1-1/2 |
38 |
305 |
133 |
400 |
20 |
2 |
51 |
368 |
150 |
500 |
30 |
3 |
76 |
381 |
160 |
500 |
55 |
Reduced Bore-Dimensions and Weights:
Size |
d |
D |
L |
H |
W |
Weight |
in |
mm |
mm |
mm |
mm |
mm |
Kg |
3/4*1/2 |
13 |
19 |
229 |
75 |
140 |
7 |
1*3/4 |
19 |
25 |
254 |
91 |
180 |
9.5 |
1-1/2*1 |
25 |
38 |
305 |
108 |
250 |
16.5 |
2*1-1/2 |
38 |
51 |
368 |
133 |
400 |
23 |
3*2 |
51 |
76 |
381 |
150 |
500 |
42 |
4*3 |
76 |
102 |
457 |
165 |
500 |
65 |
Size |
D |
D |
L |
H |
W |
Weight |
in |
mm |
mm |
mm |
mm |
mm |
Kg |
3/4*1/2 |
13 |
19 |
229 |
75 |
140 |
7 |
1*3/4 |
19 |
25 |
254 |
91 |
180 |
9.5 |
1-1/2*1 |
25 |
38 |
305 |
108 |
250 |
16.5 |
2*1-1/2 |
38 |
51 |
368 |
133 |
400 |
23 |
3*2 |
51 |
76 |
470 |
150 |
500 |
60 |
