AT type Pneumatic Rotary Rack & Pinion Actuator, Spring Return Actuator

AT Type Pneumatic Rotary Rack & Pinion Actuator, Spring Return Actuator

Detail Information

AT Type Rack-and-pinion pneumatic actuators, also as known as rotation cylinders, are rotary actuators applie for turning, opening, closing, mixing, positioning, steering and many more mechanical functions involving restricted rotation. These actuators are also often used for automation of quarter-turn valves, such as butterfly valves and ball valves.

Pneumatic rack-and-pinion actuators use the energy of compressed air by means of a pneumatic cylinder to an oscillating rotary motion. The clean, dry, and processed gas required by this actuator is provided through thelcompressed air station, which usually supports a range of pneumatic devices in a process system.

Pneumatic actuators, compare to electric actuator or motorized actuator, in many case are more stable, good for hazardous environments and more cheap. Plus, pneumatic actuator often require less maintenance and provide higher torque in comparison to their size with electric actuator.

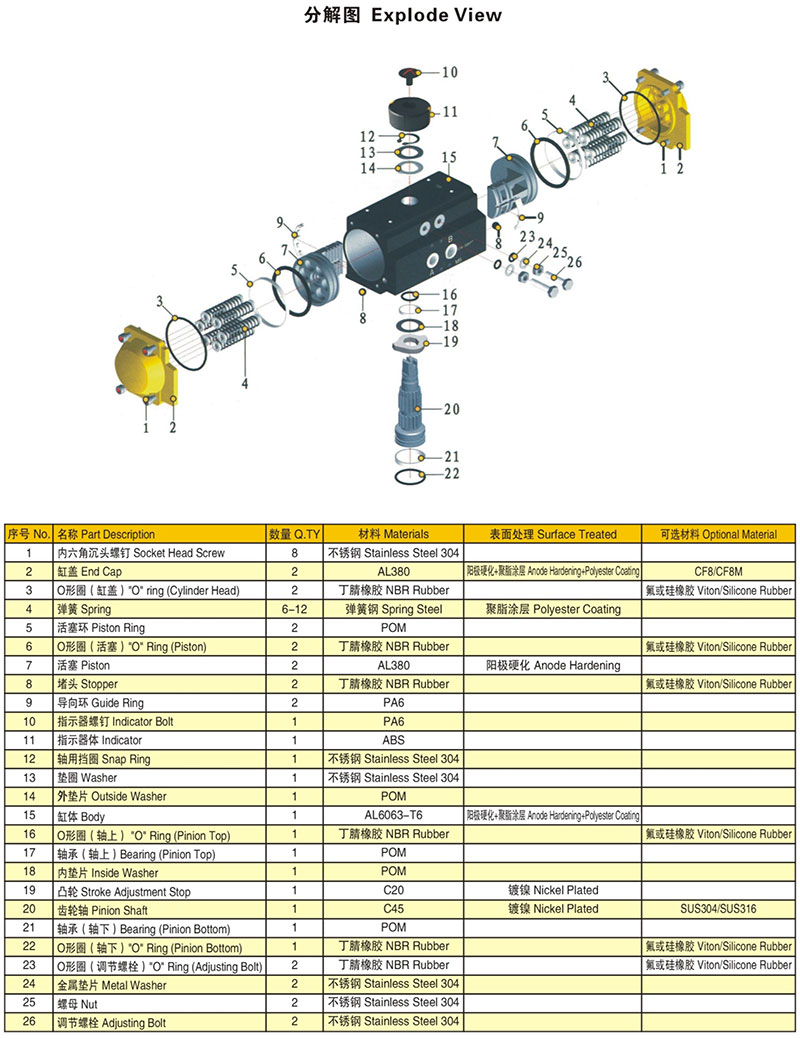

Shinjo Valve Co provides a full range of Pneumatic Rack & pinion, spring return actuator for our valves . Construction of AT type Pneumatic Rotary Rack & Pinion Actuator
Parts Materials of Construction of AT type Pneumatic Rotary Rack & Pinion Actuator
Working Principle of Single Acting And Double Acting Actuator

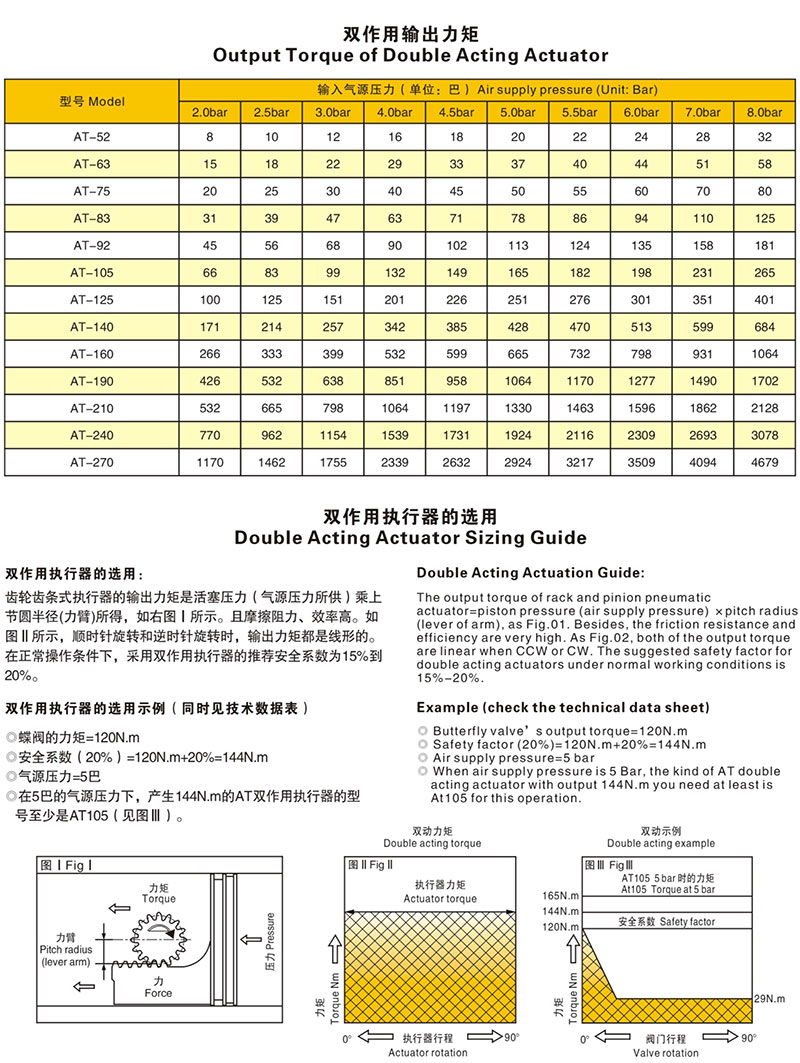

Output Torque of Double Acting Actuator
Output Torque of Single Acting Actuator

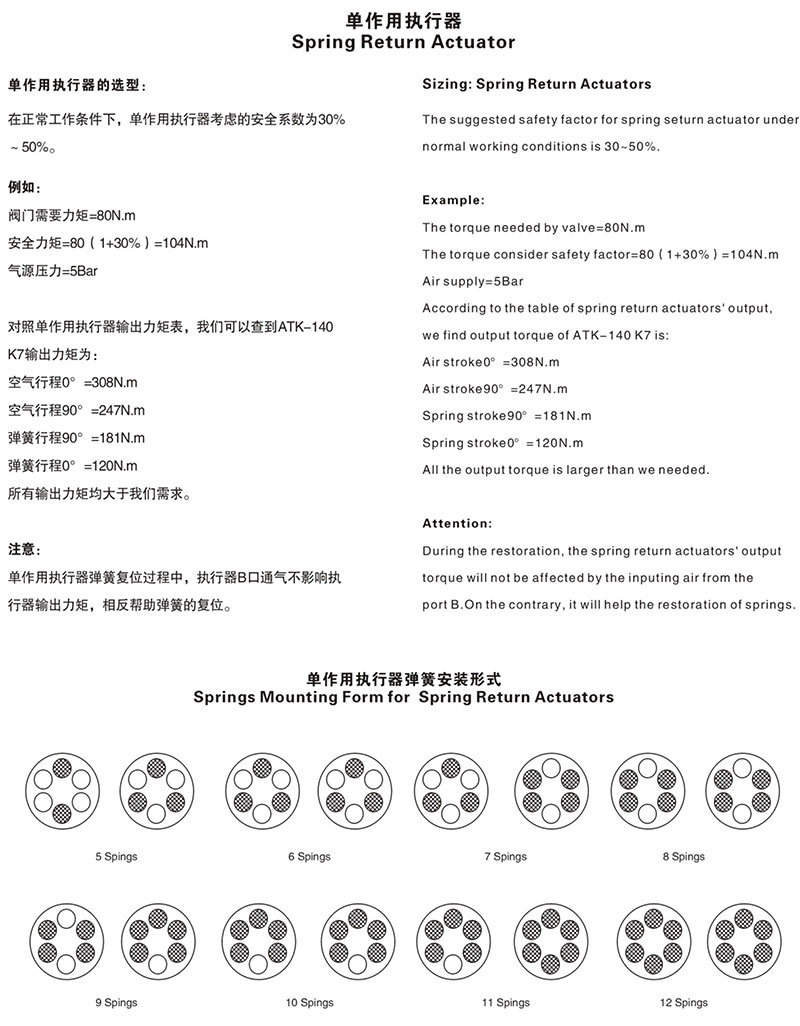

Springs Installaction for Spring Return Actuator

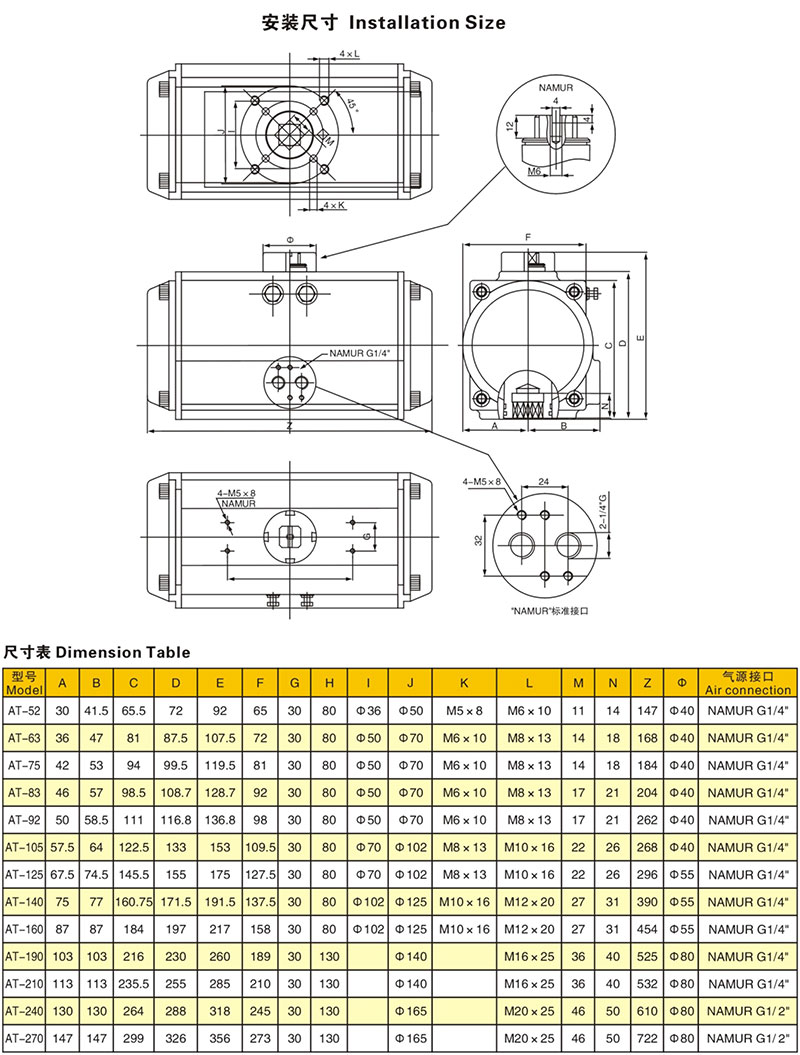

Dimensions Table of AT type Pneumatic Rotary Rack & Pinion Actuator
